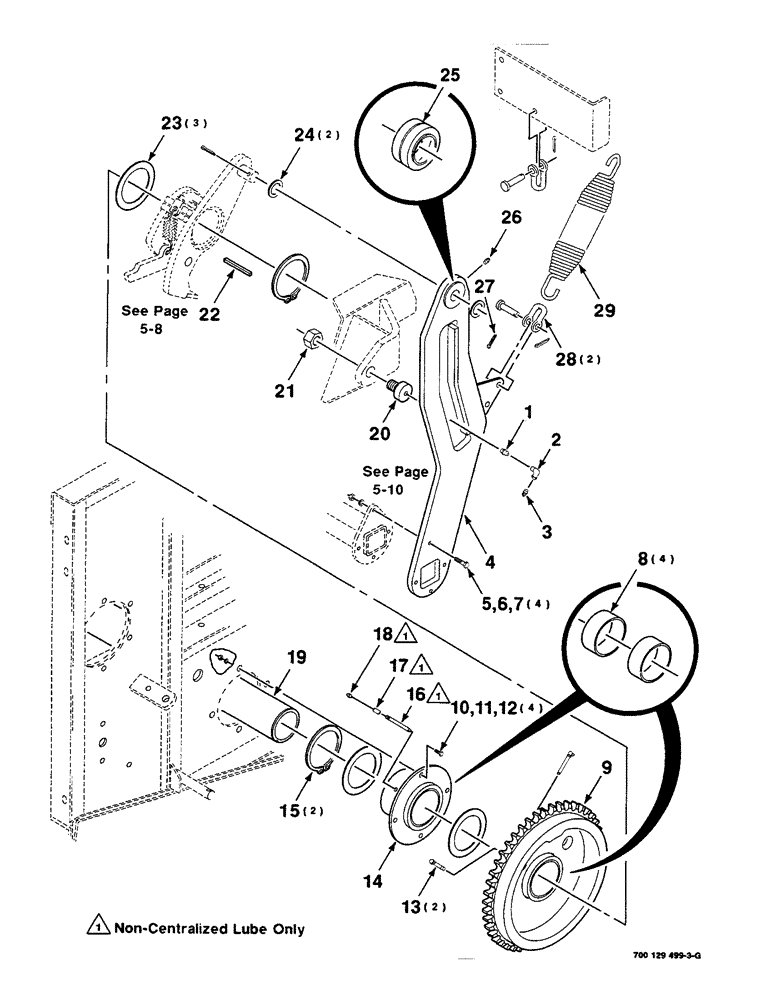

Запчасти Case IH 8590 (05-06) - STUFFER DRIVE ASSEMBLY, LEFT (13) - FEEDER

1

219-17

LUBE NIPPLE,3/16" NPTF

NIPPLE, LUBE, , Push 3/16" x .55" lg, Drive

1шт.

2

700706279

COUPLING, QUICK, FEM

COUPLER - snap on

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Spin Drive 1/4"-28 NPT x .54" lg

1шт.

4

700134416

LEVER

ARM ASSEMBLY (Includes Item 25)

1шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

700112892

BUSHING,101.21mm ID x 111.12mm OD x 44.45mm L

BEARING

4шт.

9

700112880

SPROCKET

ASSEMBLY - cam (Includes Item 8)

1шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

13

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 9 ZERK - extended

2шт.

14

700112876

SUPPORT ASSY.

SUPPORT ASSEMBLY (Includes Item 8)

1шт.

15

7852148

RING, SNAP

RING - retaining

2шт.

16

8746042

LUBE NIPPLE

NIPPLE

1шт.

17

217-1050

90 ELBOW,1/8" - 27 NPTF Female

1/8 X 90 DEGREE ELBOW

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 ZERK

1шт.

19

700112881

SHAFT

- stuffer

1шт.

20

7713837

CAM FOLLOWER

BEARING - cam, roller

1шт.

21

425-1118

NUT,1 1/8"-12, G5

1-1/8-12 H

1шт.

22

6201404

KEY

5/16 X 5/16 X 3-3/4 KEY

1шт.

23

700112885

WASHER

3шт.

24

52324

BUSHING

1-1/4 X 10 GAUGE NRMB

2шт.

25

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING

1шт.

26

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 90 DEGREE ZERK

1шт.

27

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

28

766113

CLEVIS

(Includes Pins)

2шт.

29

7758758

SPRING

- extension

1шт.
