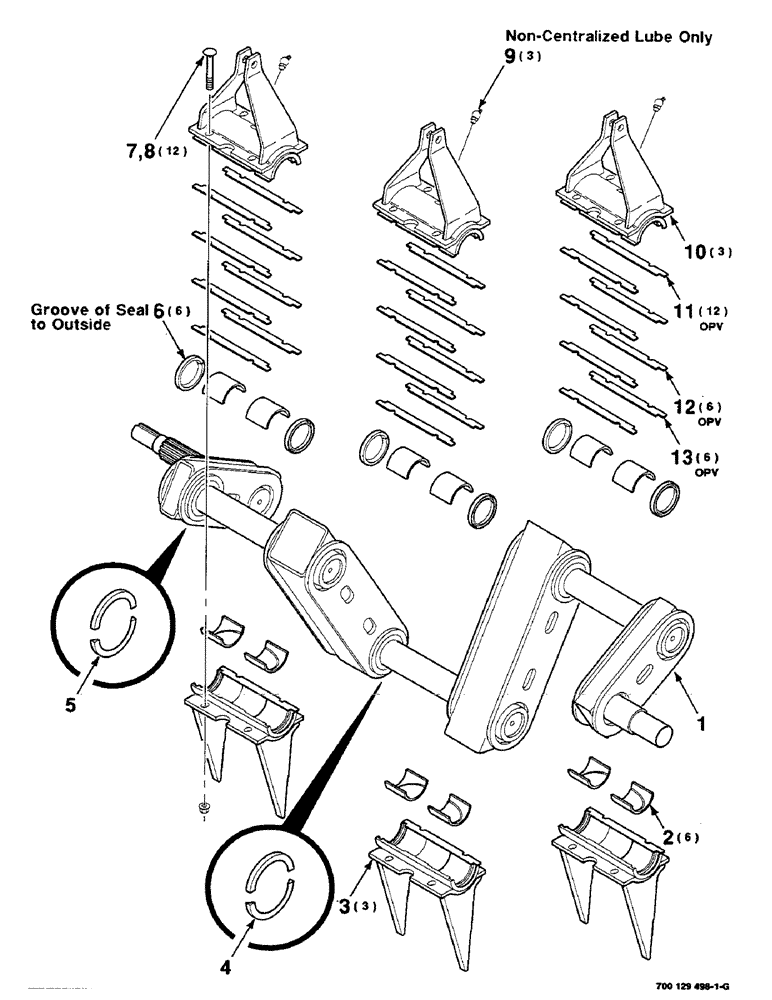

Запчасти Case IH 8590 (05-04) - CRANK ASSEMBLY (13) - FEEDER

1

700112823

CRANK

WA (Includes Items 4 & 5)

1шт.

2

700706131

BEARING SET,60.15mm ID x 70.12mm OD x 60mm L

BEARING - pair

6шт.

3

700112787

FINGER

WA

3шт.

4

700122668

KIT

WEAR RING KIT (Includes 6 Halves)

1шт.

5

700122670

KIT

WEAR RING KIT (Includes 6 Halves)

1шт.

6

700706096

SEAL

6шт.

7

433-860

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 3/4", Gr 5

1/2-13 X 3-3/4 RHSNB

12шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

12шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8 NPTF X 45 DEGREE ZERK

3шт.

10

700112817

SUPPORT

ARM WA

3шт.

11

700706850

SHIM

- 0.51/.020

12шт.

12

700706133

SHIM

- 0.25/.010

6шт.

13

700706134

SHIM

- 0.13/.005

6шт.
