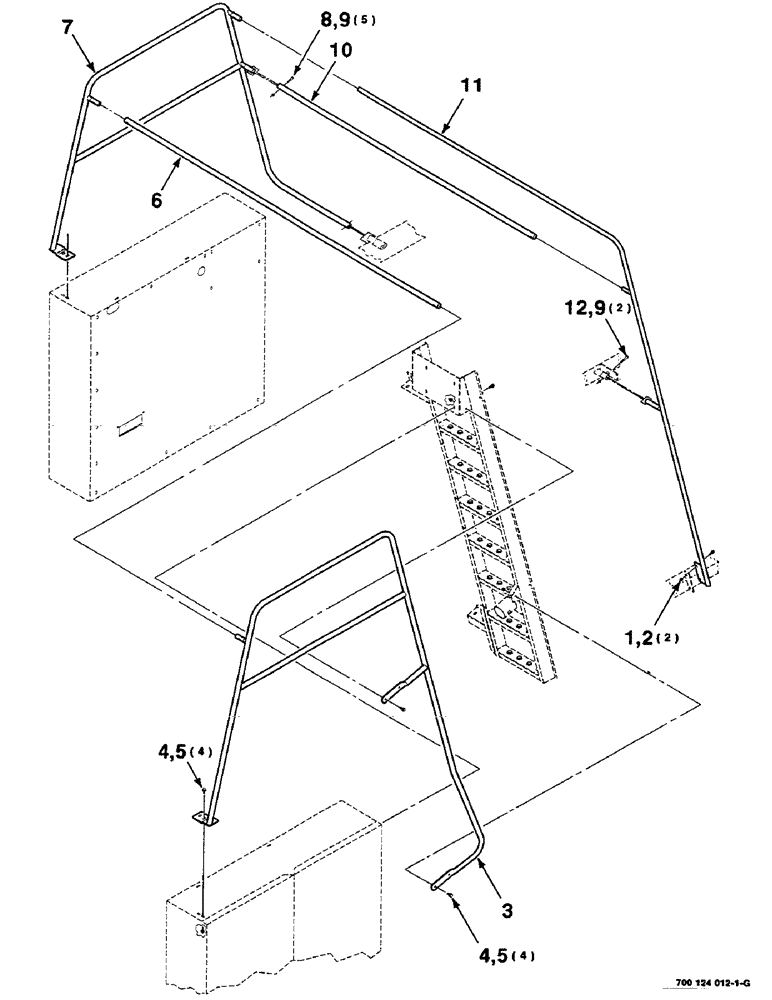

Запчасти Case IH 8590 (07-22) - HAND RAIL ASSEMBLY (12) - MAIN FRAME

1

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

3

6564702

RAIL ASSY.

RAIL WA - left

1шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

8шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

6

6564819

CROSSBAR

- front

1шт.

7

6564769

RAIL

WA - right

1шт.

8

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

5шт.

9

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

7шт.

10

6564827

CROSS

BAR - rear

1шт.

11

6564785

X

RAIL WA - right

1шт.

12

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.
