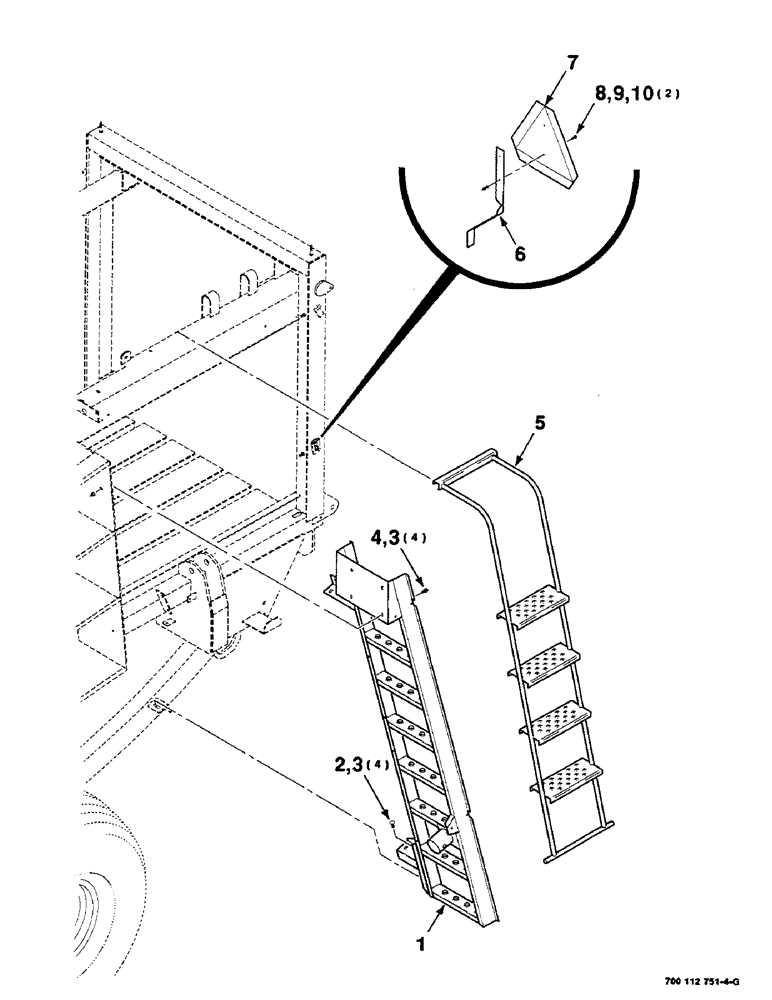

Запчасти Case IH 8590 (07-20) - LADDER AND SMV ASSEMBLY (12) - MAIN FRAME

1

700114028

LADDER

WA

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

3

231-5146

FLANGE NUT,3/8"-16

8шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

5

700114060

LADDER

WA

1шт.

6

6564645

BRACKET

1шт.

7

7020589

EMBLEM

SMV EMBLEM

1шт.

8

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

#10-24 X 3/4 CRPHMS GR60M

2шт.

9

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

10

225-14110

NUT,#10-24

2шт.
