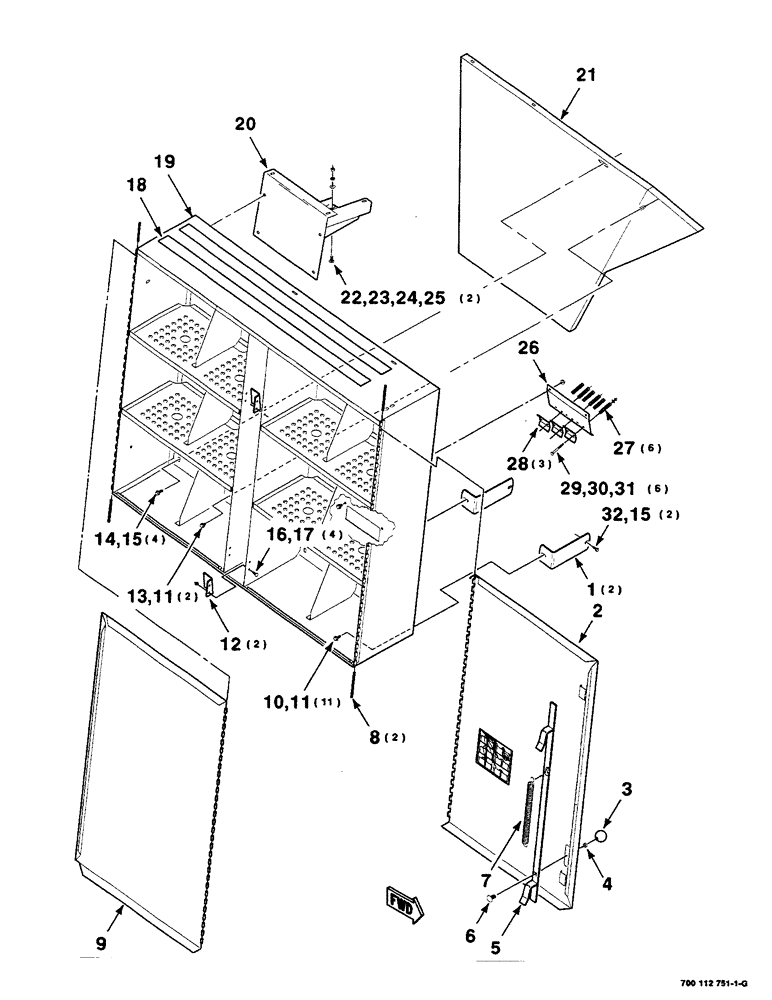

Запчасти Case IH 8590 (07-18) - TWINE BOX ASSEMBLY, RIGHT (12) - MAIN FRAME

1

6844682

BRACKET

- left

2шт.

2

700100052

DOOR

ASSEMBLY - twine, box (Includes Decals)

1шт.

3

A23885

KNOB

- control

1шт.

4

6270854

SPACER

1шт.

5

6844633

SECURING STRAP,74mm L

WA

1шт.

6

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

1шт.

7

58941

SPRING

- extension

1шт.

8

700122881

PIN

- hinge

2шт.

9

700100051

DOOR

ASSEMBLY

1шт.

10

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

11шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

13шт.

12

6844674

CATCH

2шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

15

231-5146

FLANGE NUT,3/8"-16

6шт.

16

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

4шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

18

6849178

WALL

TAPE - safety walk (10 Foot Bulk)

1шт.

19

700133651

TERMINAL BOX

TWINE WA - box, right (Includes Safety Tread)

1шт.

20

700114038

SUPPORT

WA - right

1шт.

21

700114049

BOX

SHIELD WA - right

1шт.

22

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

23

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

702400047

PLATE

1шт.

27

700707677

SPRING

6шт.

28

6488431

CLIP

PLATE

3шт.

29

26144R1

BOLT

1/4-20 X 2-1/4 RHSNB

6шт.

30

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

6шт.

31

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

6шт.

32

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.
