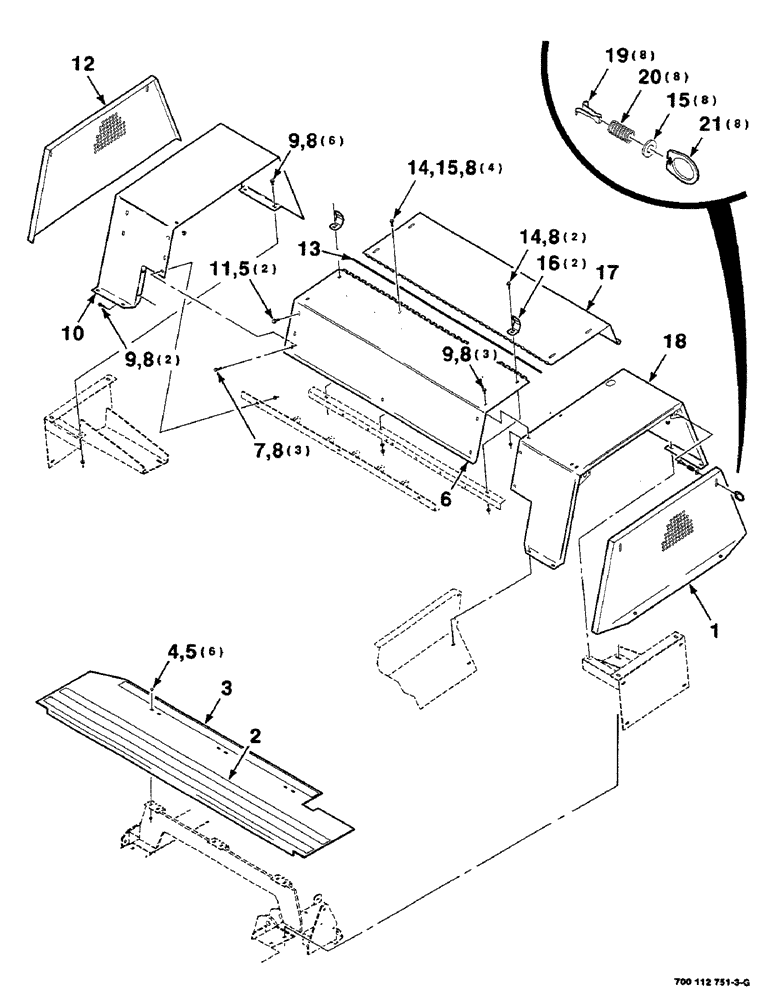

Запчасти Case IH 8590 (07-10) - SHIELDS ASSEMBLY, KNOTTER (12) - MAIN FRAME

1

700114044

SHIELD

CAP WA - end, left

1шт.

2

6849178

WALL

SAFETY - walk (10 Foot)

1шт.

3

6564512

PLATFORM

PLATFORM ASSEMBLY (Includes Item 5)

1шт.

4

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

6шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

6

700114054

SHIELD

1шт.

7

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

3шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

20шт.

9

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

11шт.

10

700114040

FRAME

WA - right

1шт.

11

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

12

700114045

SHIELD

CAP WA - end, right

1шт.

13

700122881

PIN

- hinge

1шт.

14

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

6шт.

15

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

12шт.

16

6564595

STOP

- door

2шт.

17

700114055

DOOR

- top

1шт.

18

700114039

FRAME

WA - left

1шт.

19

7894975

CLIP

8шт.

20

7758212

SPRING

- compression

8шт.

21

7894967

HANDLE

8шт.
