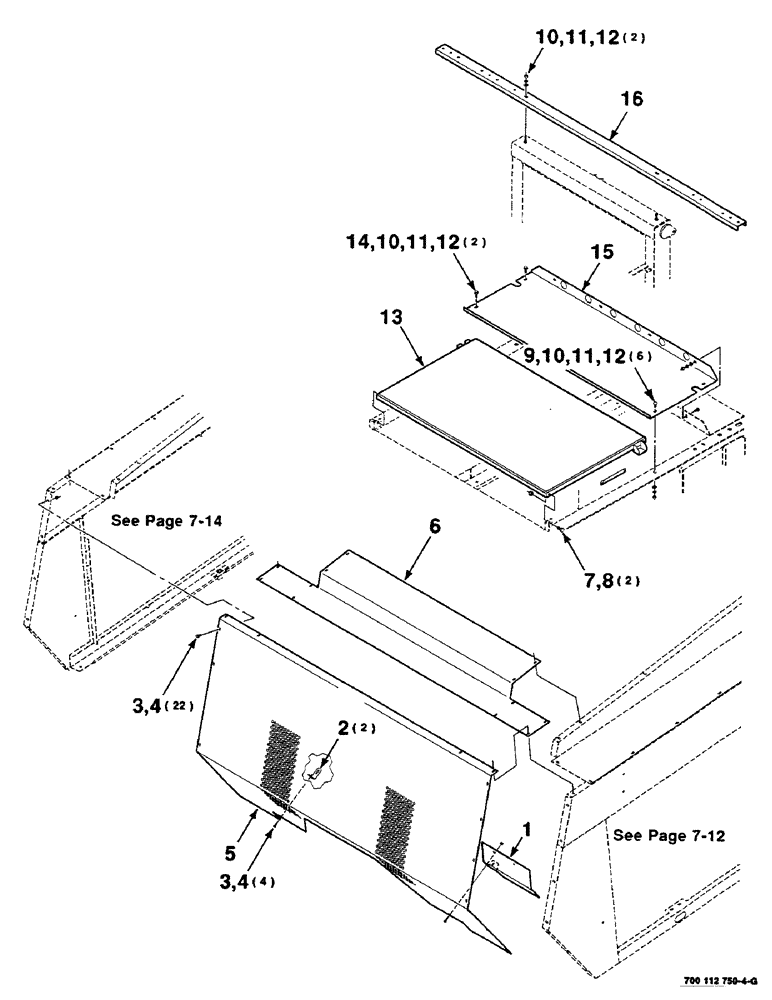

Запчасти Case IH 8590 (07-08) - SHIELDS ASSEMBLY, TOP AND FRONT (12) - MAIN FRAME

1

700150685

SUPPORT

- pump (S.N. 4910-00481 and Later)

1шт.

2

700114022

CHANNEL

ANGLE

2шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

26шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

26шт.

5

700113952

SHIELD

- front (S.N. CFH0139001 thru CFH0139499)

1шт.

700150690

SHIELD

- front (S.N. CFH0139500 and Later)

1шт.

6

700113953

SHIELD

- top

1шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

8

230-4218

LOCK NUT,1/2"-13, GA

1/2-13 HCLN

2шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

10шт.

11

492-11038

LOCK WASHER,3/8"

10шт.

12

425-106

NUT,3/8"-16, Cl 5

10шт.

13

700122886

LID

WA

1шт.

14

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

15

700113988

CHANNEL

- top

1шт.

16

700114020

CHANNEL

- light, support

1шт.
