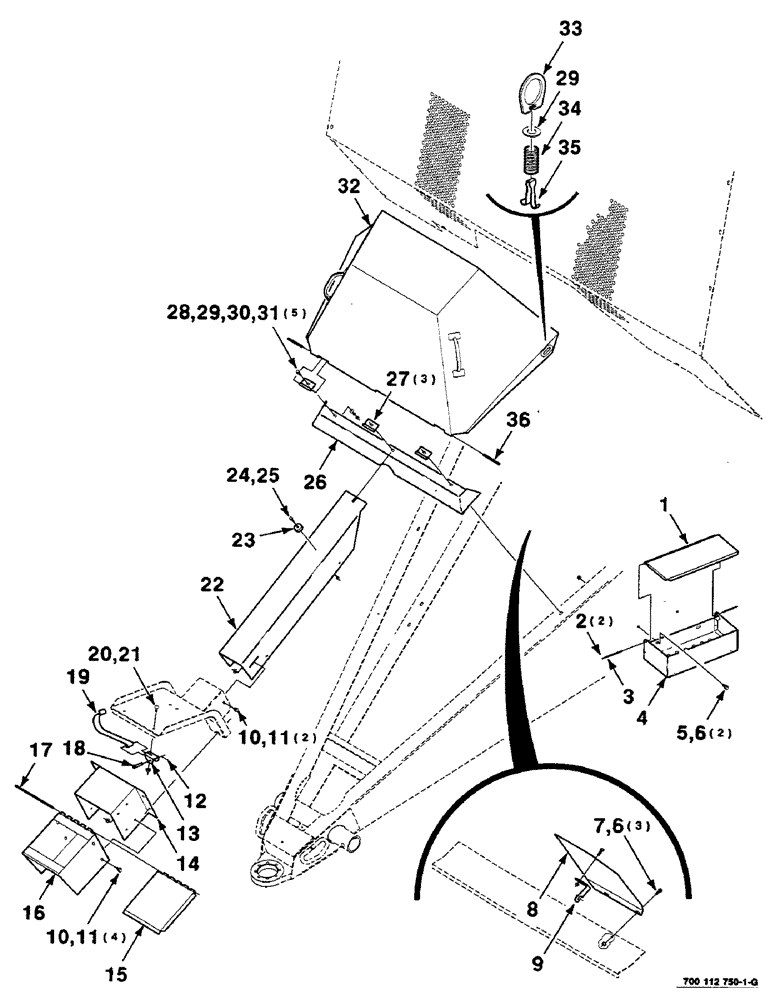

Запчасти Case IH 8590 (07-06) - DRIVELINE, FLYWHEEL SHIELDS AND TOOLBOX ASSEMBLIES (12) - MAIN FRAME

1

700108569

LID

- tool, box

1шт.

2

700707858

SNAP RING

RING - retaining

2шт.

3

700108570

ROD

- hinge

1шт.

4

700108566

TOOL BOX

BOX WA - tool

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

2шт.

6

231-5146

FLANGE NUT,3/8"-16

5шт.

7

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

8

700114023

SHIELD

1шт.

9

700114024

ANGLE

1шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

12

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

13

700123830

CHANNEL

- support (S.N. CFH0139001 thru CFH0139499)

1шт.

700150655

CHANNEL

- support (S.N. CFH0139500 and Later)

1шт.

14

700114012

BEARING COVER

SHIELD - bearing

1шт.

15

700114013

COVER

- shield, U-Joint

1шт.

16

700114007

SHIELD

WA - PTO

1шт.

17

700116914

PIN

- hinge

1шт.

18

863381

CLIP,9.53mm OD x 50.8mm L

3/8 X 2 CLEVIS PIN

1шт.

19

700134443

SUPPORT

- strap

1шт.

20

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

21

329-286

FLANGE NUT,Flg, 3/8"-16, G8

1шт.

22

700114006

SHIELD

- PTO

1шт.

23

700708648

BUMPER

1шт.

24

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

1шт.

25

1954816C1

LOCK NUT

#12-24 HCLN - special

1шт.

26

700133740

CHANNEL

1шт.

27

700113994

HINGE

SUPPORT - hinge

3шт.

28

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

5шт.

29

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

31

425-105

NUT,5/16"-18, G5

5шт.

32

700113986

SHIELD

WA

1шт.

33

7894967

HANDLE

1шт.

34

7758212

SPRING

- compression

1шт.

35

7894975

CLIP

1шт.

36

65052

SPACER

1шт.
