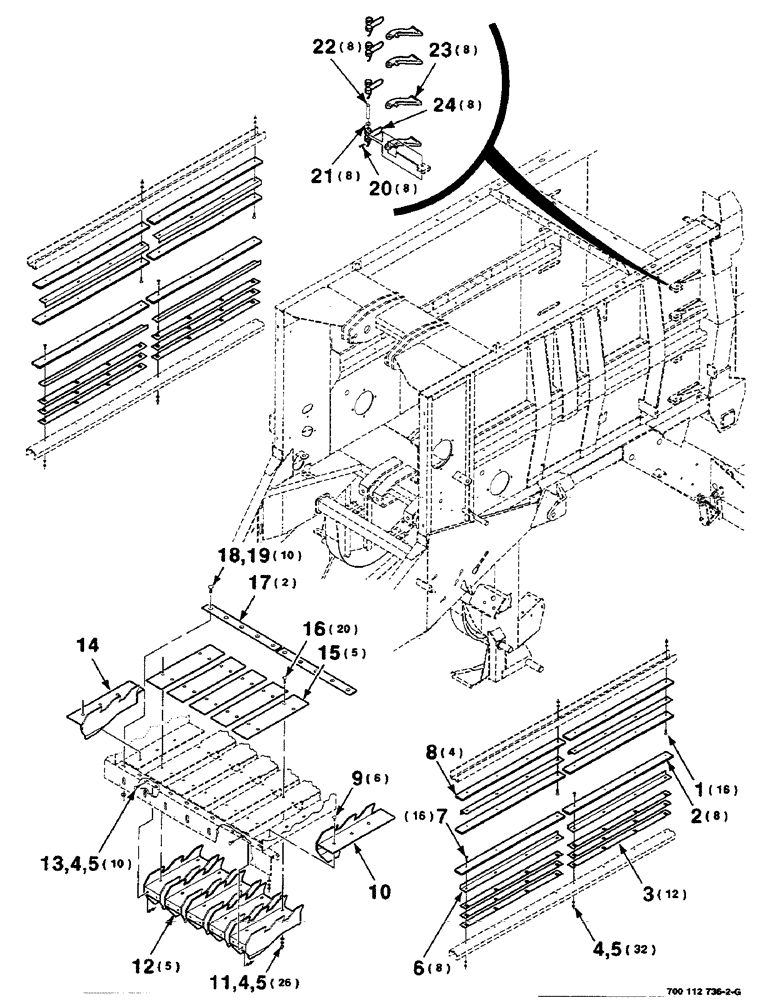

Запчасти Case IH 8590 (07-02) - PLUNGER RAILS, KNIVES AND HAY DOGS ASSEMBLY (12) - MAIN FRAME

1

164-54

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 3/4"

3/8-16 X 1-3/4 HSFCHCS SPL

16шт.

2

700113607

GUIDE

RAIL - hardened

8шт.

3

700113604

SHIM

- 0.46 / .018

12шт.

4

492-11038

LOCK WASHER,3/8"

68шт.

5

425-106

NUT,3/8"-16, Cl 5

68шт.

6

700113608

SHIELD

8шт.

7

61-43820

HEX SOC SCREW,FLAT, 3/8" x 1-1/4"

3/8-16 X 1-1/4 HSFCHCS SPL

16шт.

8

700113606

GUIDE

RAIL

4шт.

9

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 PLOW BOLT

6шт.

10

700113600

DOG

HAY DOG WA - left

1шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

26шт.

12

700113594

DOG

HAY DOG WA

5шт.

13

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

10шт.

14

700113601

DOG

HAY DOG WA - right

1шт.

15

700113616

WEAR PLATE

PLATE - wear

5шт.

16

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 PLOW BOLT

20шт.

17

700706377

KNIFE

2шт.

18

707448

BOLT

1/2-13 X 1-1/2 PLOW BOLT

10шт.

19

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

20

S120261

PIN

.148 WIRE HAIR PIN COTTER

8шт.

21

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

8шт.

22

439-11060

HEADED PIN,15.88mm OD x 95.25mm L

5/8 X 3-3/4 CLEVIS PIN

8шт.

23

700137654

DOG

HAY DOG

8шт.

24

700706376

SPRING

- torsion

8шт.
