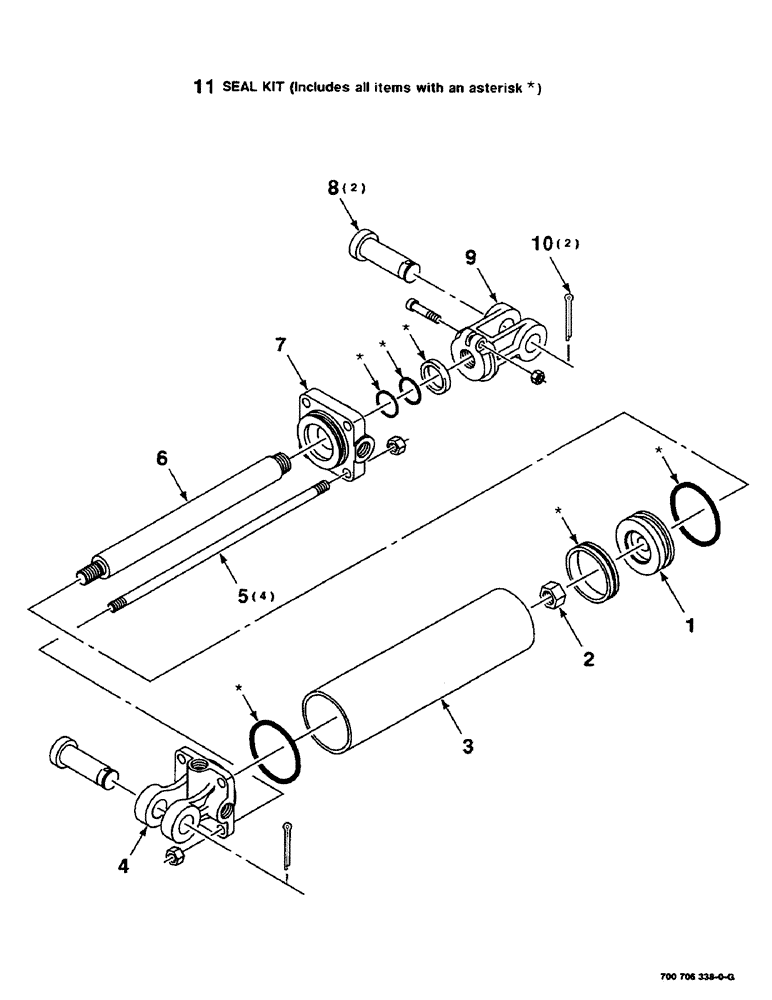

Запчасти Case IH 8590 (08-12) - HYD. CYLINDER ASSEMBLY, DENSITY CONTROL, 700706338 HYD. CYLINDER COMPLETE, 4" BORE X 16" STROKE (07) - HYDRAULICS

700706338

HYDRAULIC CYLINDER,31.75mm Rod, 106.4mm Stroke

COMPLETE (4 Inch Bore x 16 Inch Stroke)

2шт.

1

700708626

PISTON

1шт.

2

7036676

NUT

- piston

1шт.

3

B17240

TUBE

1шт.

4

B17282

BASE

- cylinder

1шт.

5

700707317

TIE-ROD

ROD - tie

4шт.

6

700707318

THREADED ROD

ROD

1шт.

7

B17270

HEAD

- cylinder

1шт.

8

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

PIN - clevis

2шт.

9

T55022

CLEVIS

- rod

1шт.

10

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

11

700708625

SEAL KIT

1шт.
