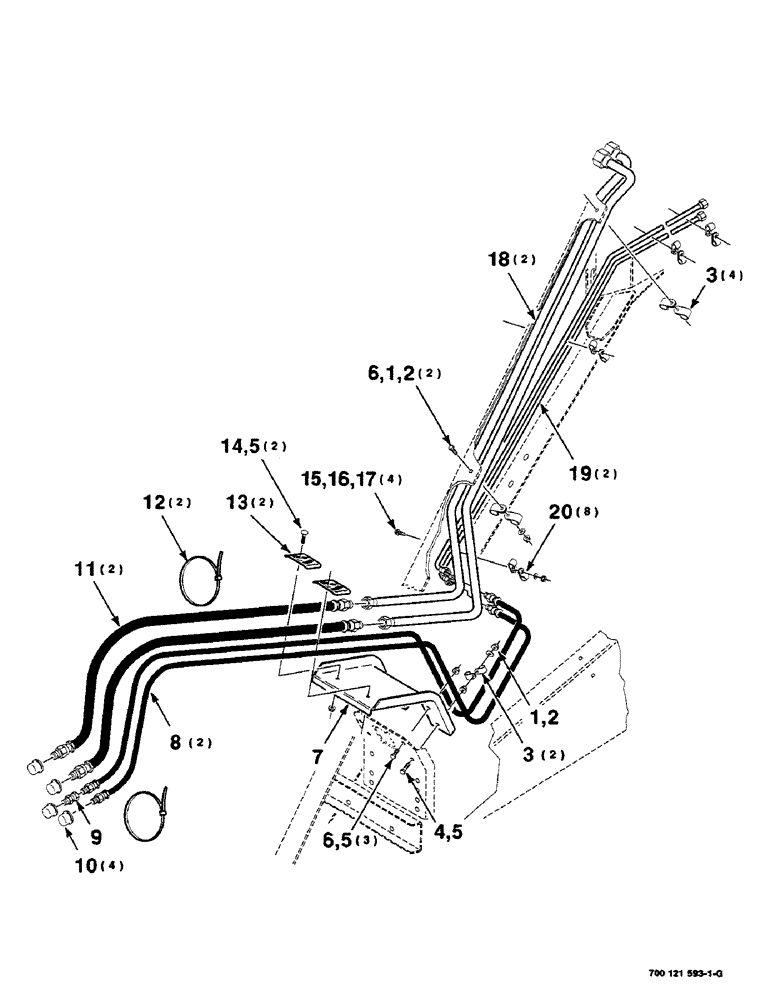

Запчасти Case IH 8590 (08-02) - HYDRAULIC ASSEMBLY, FRONT (07) - HYDRAULICS

1

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

2

329-286

FLANGE NUT,Flg, 3/8"-16, G8

3шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Hose 3/4", Insul, 3/8" Bolt

6шт.

4

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

7

700113640

SUPPORT

WA (S.N. CFH0139001 thru CFH0139499)

1шт.

700150657

SUPPORT

WA (S.N. CFH0139500 and Later)

1шт.

8

700711860

HYDRAULIC HOSE,9.65 mm ID x 2100.00 mm, SAE 100R1

9.65 mm ID x 2100.00 mm, SAE 100R1

2шт.

9

7846389

RESTRICTOR

1шт.

10

746677

CAP

4шт.

11

700706388

FLEXIBLE HOSE

HOSE - hydraulic

2шт.

12

7021728

STRAP

TIE

2шт.

13

700129085

CLAMP

2шт.

14

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

2шт.

15

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

4шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

18

700706389

RIGID TUBE

LINE - hydraulic

2шт.

19

700716375

FLEXIBLE HOSE

LINE - hydraulic

2шт.

20

700708939

CLAMP

- heavy, duty

8шт.
