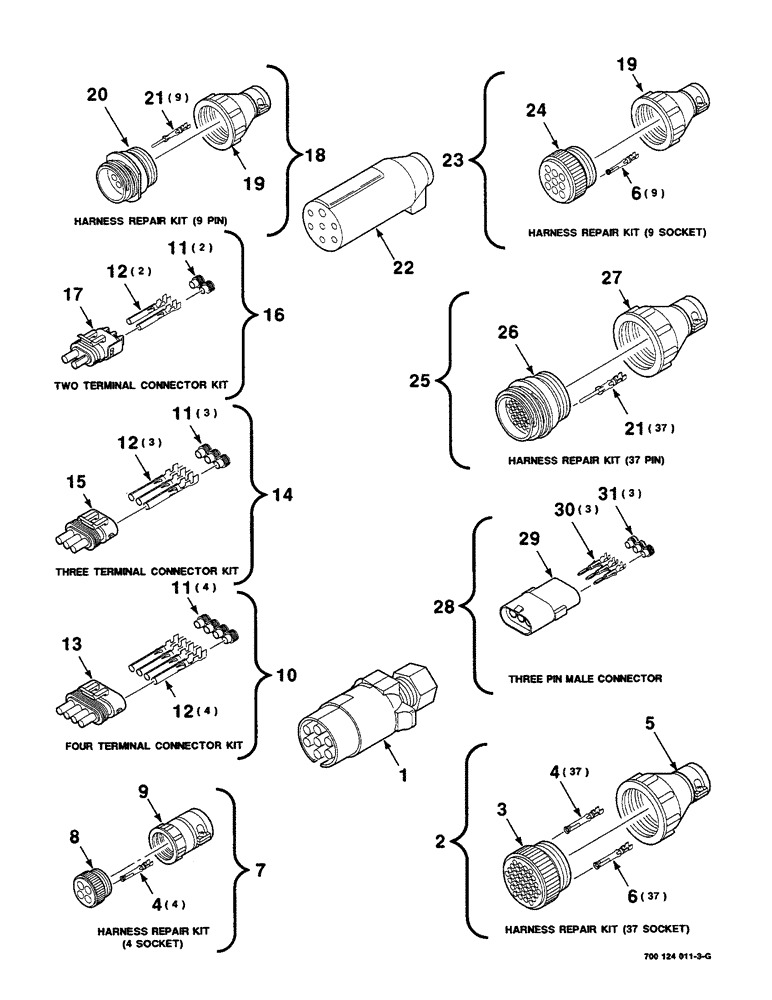

Запчасти Case IH 8590 (04-12) - ELECTRICAL HARNESS SERVICE PARTS (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1
700700035
MULTIPOLE CONNECTOR,Male, Pole
CONNECTOR - male, 7 pole (For European Tractors Only)
1шт.
2
700707004
REPAIR KIT
KIT - harness repair (Includes Items 3, 4, 5 & 6)
1шт.
3
245490C1
ELEC CONNECTOR,Female, 37 Pin
PLUG - connector, female
1шт.
4
700718607
TERMINAL
SOCKET - type III, 18-14 AWG
1шт.
5
131499C1
CLAMP
- cable
1шт.
6
700718608
TERMINAL
SOCKET - type III, 24-20 AWG
1шт.
7
700712132
REPAIR KIT
KIT - harness repair (Includes Items 4, 8 & 9)
1шт.
8
700709232
POWER SOCKET
PLUG - standard sex
1шт.
9
1994741C1
CONTACT HOUSING
CLAMP - cable
1шт.
10
700707002
REPAIR KIT
KIT - harness repair (Includes Items 11, 12 & 13)
1шт.
11
700706400
PLUG
SEAL
1шт.
12
700708760
ELEC. TERMINAL PIN,18 - 20 SAE
- sleeve
1шт.
13
700708963
WIRE CONNECTOR
CONNECTOR - female
1шт.
14
700707001
REPAIR KIT
KIT - harness repair (Includes Items 11, 12 & 15)
1шт.
15
245484C1
ELEC CONNECTOR,3 Pin
CONNECTOR - female
1шт.
16
700706999
REPAIR KIT
KIT - harness repair (Includes Items 11, 12 & 17)
1шт.
17
245482C1
ELEC CONNECTOR,2 Pin
CONNECTOR - female
1шт.
18
1713973
ELECTRICAL WIRE
KIT - harness repair (Includes Items 19, 20 & 21)
1шт.
19
700709708
CLAMP
- cable
1шт.
20
700708079
WIRE CONNECTOR
RECEPTACLE (9 Pin)
1шт.
21
700718605
TERMINAL
PIN - type III
1шт.
22
121646C1
TERMINAL CONNECTOR,Female
CONNECTOR - plug, 7 pole
1шт.
23
1713981
KIT
- harness repair (Includes Items 6, 19 & 24)
1шт.
24
700709704
WIRE CONNECTOR
PLUG (9 Pin)
1шт.
25
700707003
REPAIR KIT
KIT - harness repair (Includes Items 21, 26 & 27)
1шт.
26
225138C1
CONNECTOR, ELEC
PLUG - connector, female
1шт.
27
245491C1
ELEC CONNECTOR
CLAMP - cable
1шт.
28
700719282
REPAIR KIT
KIT - harness repair (Includes Items 29, 30 & 31)
1шт.
29
700706413
ELEC CONNECTOR
3 WAY SHROUD CONNECTOR
1шт.
30
700706414
TERMINAL
PIN - terminal
1шт.
31
700706415
PLUG
SEAL
1шт.
Выбрано товаров: 31
