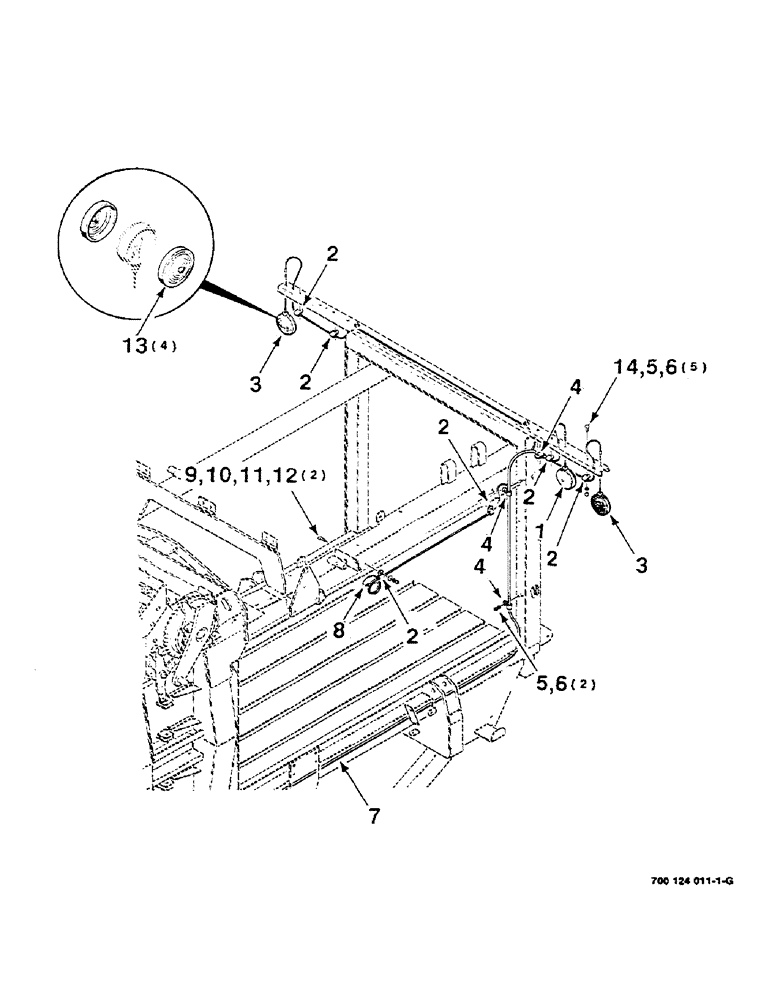

Запчасти Case IH 8590 (04-04) - LIGHTS ASSEMBLY, TAIL AND FLASHER (06) - ELECTRICAL

1

700706634

STOP LIGHT

LIGHT - tail (Red)

1шт.

2

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

6шт.

3

700708036

SIDE LAMP ASSY

LIGHT - flasher (Yellow) (Includes Item 13)

2шт.

4

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

3шт.

5

492-11038

LOCK WASHER,3/8"

7шт.

6

425-106

NUT,3/8"-16, Cl 5

7шт.

7

700706642

WIRE HARNESS

HARNESS - wire

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

9

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

10

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

425-105

NUT,5/16"-18, G5

2шт.

13

700711749

LENS

(Yellow)

4шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

5шт.
