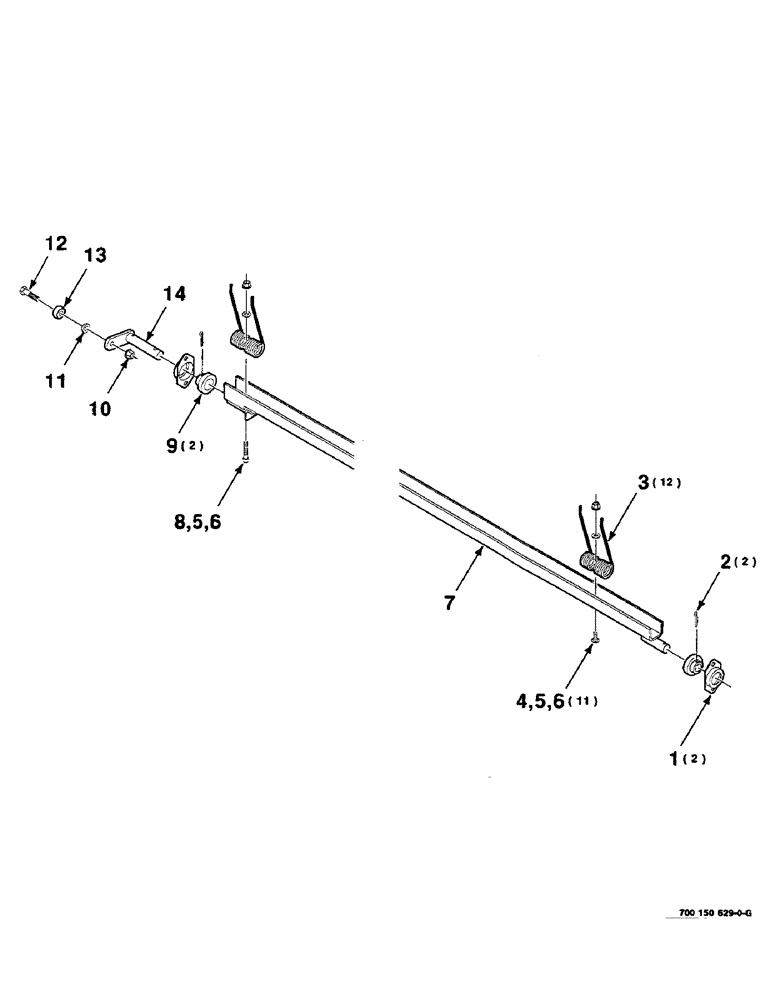

Запчасти Case IH 8590 (03-20) - BAR ASSEMBLY, TINE, S.N. CFH0139500 AND LATER Pickup

1

700108622

FLANGED BEARING

FLANGE - bearing

2шт.

2

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

3

700714199

TINE

- double

12шт.

4

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

11шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

12шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

7

700113235

CHANNEL

WA - tine

1шт.

8

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

3/8-16 X 2 HSHCS SPL

1шт.

9

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING - cylindrical

2шт.

10

700707867

NUT

1/2-20 HFTLN GR/G

1шт.

11

700137750

SPACER

1шт.

12

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-20 X 2 C GR8

1шт.

13

700720050

CAM FOLLOWER

BEARING - cam, follower

1шт.

14

700113239

CRANK

WA

1шт.
