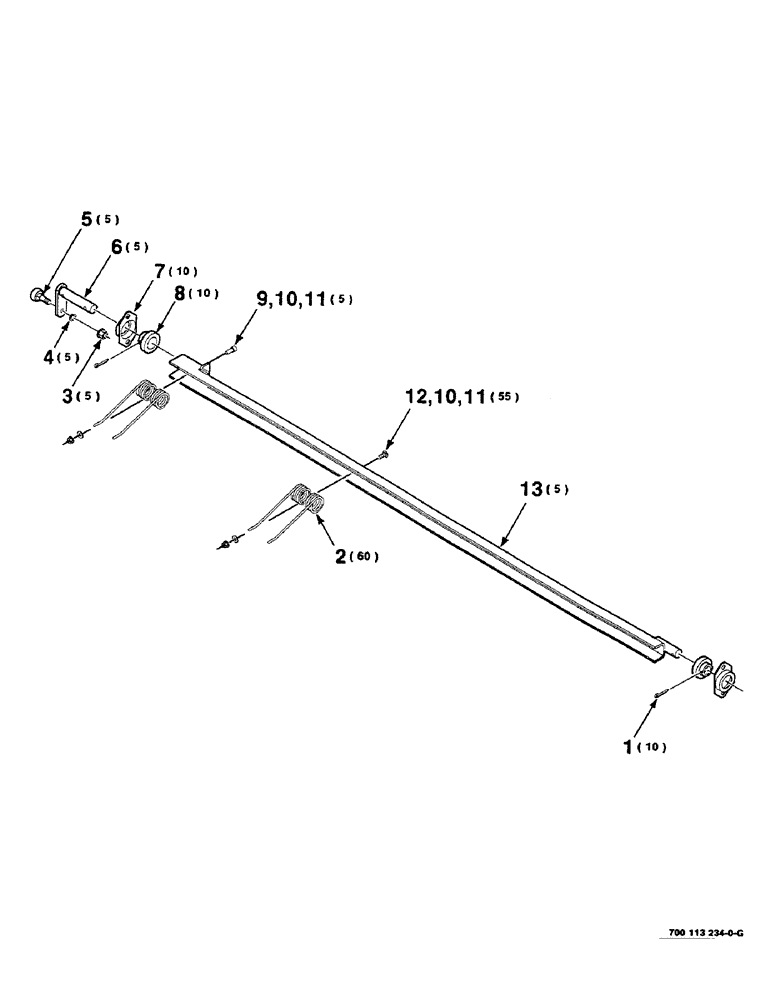

Запчасти Case IH 8590 (03-18) - BAR ASSEMBLY, TINE, S.N. CFH0139001 THRU CFH0139499 Pickup

1

431-1632

1/4 X 2 COTTER PIN

10шт.

2

700714199

TINE

- double

60шт.

3

702700045

LOCK NUT

- spiralock

5шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

5

700705612

CAM FOLLOWER

BEARING - cam, follower

5шт.

6

700113239

CRANK

WA

5шт.

7

700108622

FLANGED BEARING

FLANGE - bearing

10шт.

8

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING - cylindrical

10шт.

9

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

3/8-16 X 2 HSHCS

5шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

60шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

60шт.

12

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

55шт.

13

700113235

CHANNEL

- tine

5шт.
