Запчасти Case IH 8590 (03-12) - PICKUP DRIVE ASSEMBLY, RIGHT Pickup

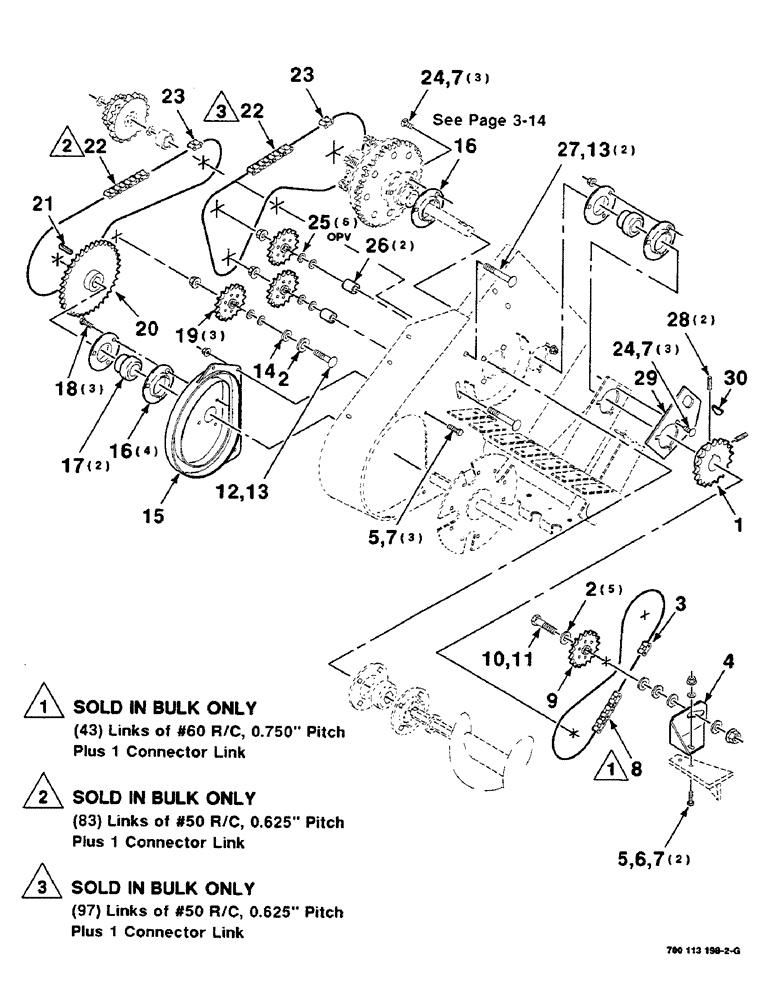

Схема запчастей Case IH 8590 - (03-12) - PICKUP DRIVE ASSEMBLY, RIGHT Pickup
19
23
9
20
25
18
7
24
15
1
16
11
24
8
29
17
4
2
28
27
5
30
7
21
14
7
6
13
2
3
12
5
22
10
26
7
23
16
13
22

Артикул

Название

Примечание

Количество

1

7047541

SPROCKET ASSY.

SPROCKET 60B18 TOOTH

1шт.

2

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

6шт.

3

241-1316

LINK,19.05mm Pitch

LINK - connector, #60 R/C

1шт.

4

700113291

SUPPORT

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

5шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

11шт.

8

7086002

CHAIN (AG)

CHAIN - roller #60 (10 Foot Bulk)

1шт.

9

541857R92

SPROCKET,15T

- idler 15 tooth

1шт.

10

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

11

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

12

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

1шт.

13

329-288

FLANGE NUT,Flg, 1/2"-13, G8

3шт.

14

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

15

700113645

CAM

- pickup

1шт.

16

617863R1

FLANGED BEARING

5шт.

17

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

2шт.

18

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

19

565442R91

SPROCKET

- idler 17 tooth

3шт.

20

6141311

SPROCKET ASSY.

SPROCKET 50B36 TOOTH

1шт.

21

61424

KEY

1/4 X 1-1/4 GIB KEY

1шт.

22

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller #50 (10 Foot Bulk)

1шт.

23

47530

LINK, CONNECTING

LINK - connector, #50 R/C

2шт.

24

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

25

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

1/2 X 14 GAUGE NRMB P

6шт.

26

6530638

BUSHING

2шт.

27

111-505

CARRIAGE BOLT,Short NK, 1/2"-13 x 3 1/2", G5

BOLT, CARRIAGE, Short NK, 1/2"-13 x 3 1/2", G5

2шт.

28

83-13810

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

3/8-16 X 5/8 CPHSSS

2шт.

29

700113297

SHIELD

1шт.

30

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

1шт.

Выбрано товаров: 30
