(02-32) - BEARING ASSEMBLY, S.N. CFH0139090 AND LATER

Запчасти Case IH 8590 (02-32) - BEARING ASSEMBLY, S.N. CFH0139090 AND LATER Driveline

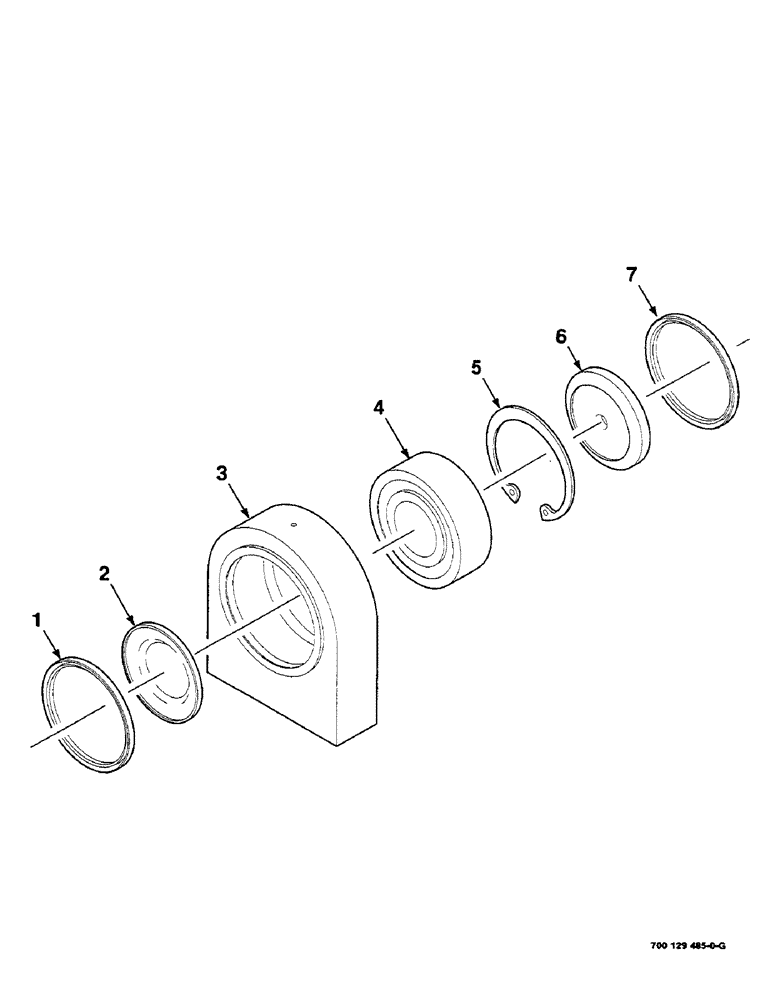

Схема запчастей Case IH 8590 - (02-32) - BEARING ASSEMBLY, S.N. CFH0139090 AND LATER Driveline
6
3
1
7
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700716382

SEAL

- oil

1шт.

2

700129488

SPACER

- bushing, seal

1шт.

3

700129487

BEARING HOUSING

HOUSING - bearing, crankarm

1шт.

4

700716384

SPHERICAL BEARING,75 mm ID x 160 mm OD x 55 mm

BEARING - spherical roller

1шт.

5

8052144

RING, SNAP

RING - retaining

1шт.

6

700129489

BUSHING

- seal

1шт.

7

700716383

SEAL

- oil

1шт.

Выбрано товаров: 7
