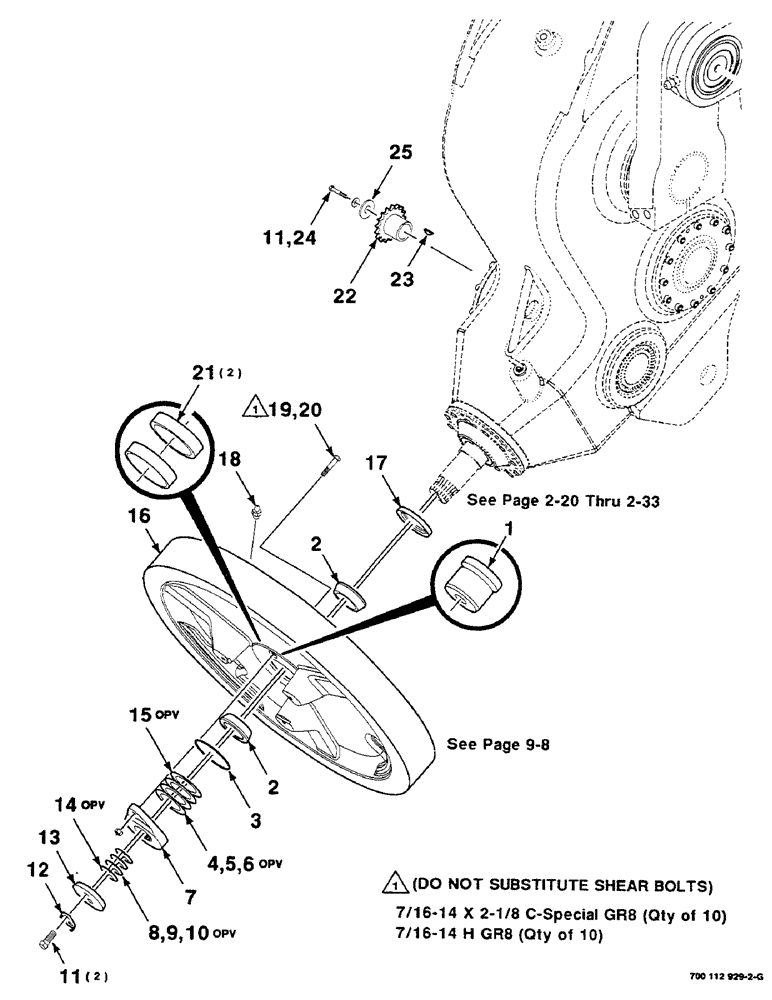

Запчасти Case IH 8590 (02-16) - FLYWHEEL ASSEMBLY Driveline

1

7852718

SLEEVE

- shear

1шт.

2

78848C91

BEARING ASSY,61.98mm ID x 24.61mm W

CONE - bearing

2шт.

3

700706050

O-RING

1шт.

4

700706058

SHIM

- 0.25/.010

1шт.

5

700706057

SHIM

- 0.13/.005

1шт.

6

700707991

SHIM,63.5mm ID x 95mm OD x 0.51mm Thk

- 0.51/.020

1шт.

7

700137135

HUB

- shear

1шт.

8

700707993

SHIM

- 0.51/.020

1шт.

9

700706061

SHIM

- 0.25/.010

1шт.

10

700706060

SHIM

- 0.13/.005

1шт.

11

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

3шт.

12

700113045

LOCKING PLATE

TAB - lock

1шт.

13

700113044

RETAINING PLATE

CAP - retainer

1шт.

14

700706059

SHIM

- 0.08/.003

1шт.

15

700706056

SHIM

- 0.08/.003

1шт.

16

700124039

BALER FLYWHEEL

FLYWHEEL ASSEMBLY (Includes Item 1 and 21)

1шт.

17

700706045

SEAL

- oil

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

19

6521868

BOLT

SACK OF SHEAR BOLTS

1шт.

20

429-107

NUT,7/16"-14, G8

1шт.

21

610513C1

BEARING CUP,101.6mm OD x 19.84mm W

CUP - bearing

2шт.

22

700112923

SPROCKET

WA

1шт.

23

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

1шт.

24

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

58 HARDENED WIDE PLAIN WASHER

1шт.

25

6526586

WASHER

WASHER - special

1шт.
