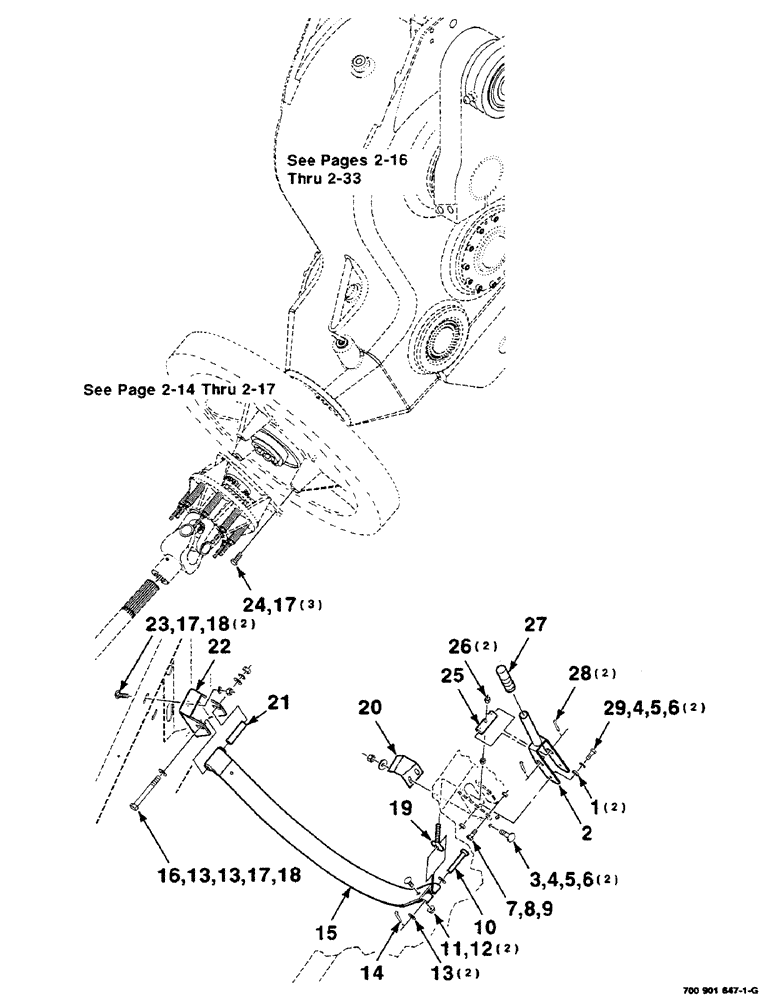

Запчасти Case IH 8590 (02-12) - FLYWHEEL BRAKE ASSEMBLY Driveline

1

6489231

SPACER

2шт.

2

700113054

LEVER

WA - brake

1шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

425-106

NUT,3/8"-16, Cl 5

4шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

425-105

NUT,5/16"-18, G5

1шт.

10

439-5848

HEADED PIN,1/2" x 3", G5

1/2 X 3 CLEVIS PIN

1шт.

11

706176

SCREW

5/16-18 X 3/4 CRTHMS

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

13

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

14

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

15

700113058

BRAKE BAND

BRAKE ASSEMBLY

1шт.

16

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 X 4-1/2 C

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

19

766667

BOLT,1/2" - 13 x 10"

1/2-13 X 10 EYEBOLT

1шт.

20

700113052

STOP

1шт.

21

6524003

SPACER

1шт.

22

700112893

CHANNEL

- right

1шт.

23

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

3шт.

25

700113057

PIN

- trunnion

1шт.

26

231-1448

NUT,1/2"-13, GB

1/2-13 LHSN

2шт.

27

27342

GRIP

- handle

1шт.

28

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
