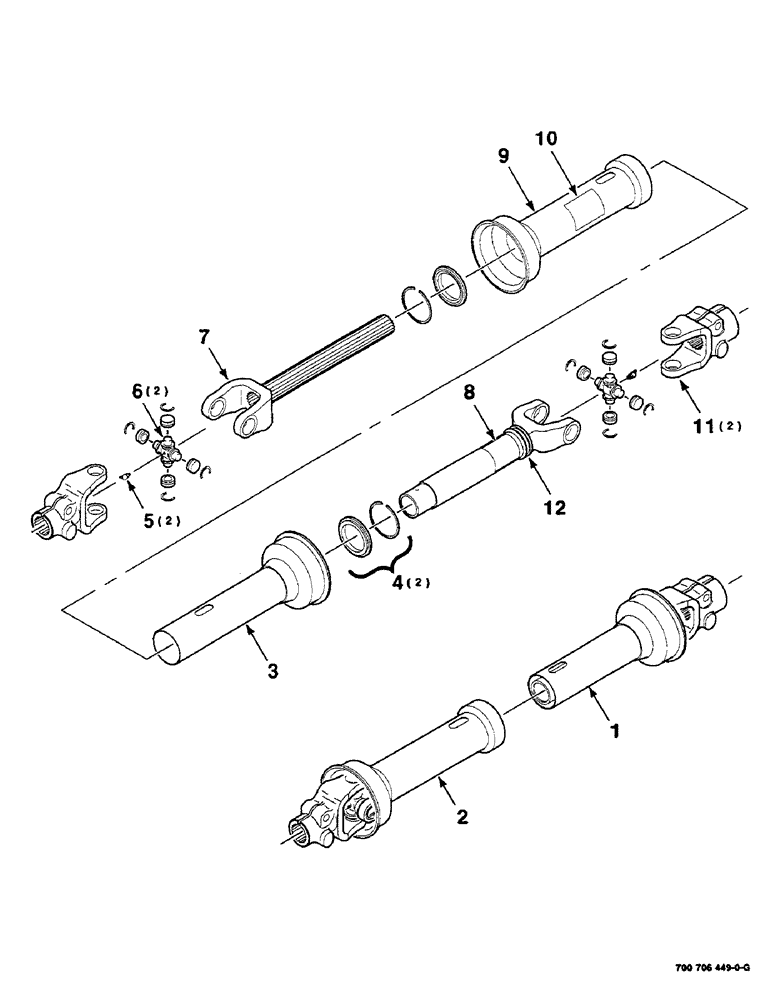

Запчасти Case IH 8590 (02-10) - DRIVELINE ASSEMBLY, IMPLEMENT, 1000 RPM-TYPE 3 Driveline

1

700715955

YOKE

U-JOINT ASSEMBLY - half, implement

1шт.

2

700715954

YOKE

U-JOINT ASSEMBLY - half, tractor

1шт.

3

700706953

SHIELD

- inner

1шт.

4

700712579

BEARING ASSY

BEARING AND RETAINER KIT

2шт.

5

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8 PTF X 65 DEGREE ZERK

2шт.

6

470077R91

BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"

CROSS AND BEARING KIT (Includes Item 5)

2шт.

7

8802613

SHAFT

YOKE - shaft

1шт.

8

1326528C1

DECAL

- danger, shield missing

1шт.

9

700706954

SHIELD

- outer

1шт.

10

80672C1

DECAL

- danger, rotating driveline

1шт.

11

700712517

YOKE

1-3/4" X 20 SPLINE YOKE - implement

2шт.

12

8802621

YOKE,66.68 mm OD x 508.00 mm L

AND TUBE

1шт.
