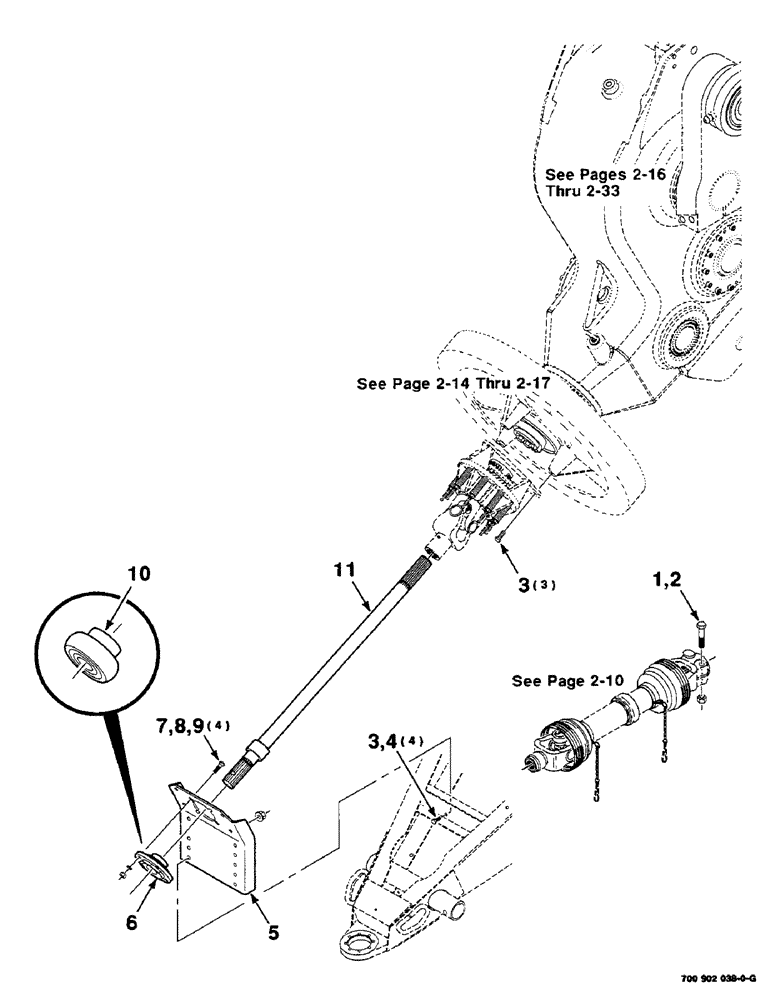

Запчасти Case IH 8590 (02-06) - FLYWHEEL DRIVE SHAFT MOUNTING ASSEMBLY, TYPE 3 Driveline

1

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

2

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

3

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

7шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

5

700113022

SUPPORT

- bearing

1шт.

6

700124004

BEARING ASSY,44.45 mm ID x 85 mm OD x 29 mm

BEARING ASSEMBLY (Includes Item 10)

1шт.

7

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

10

51318

BEARING

- spherical

1шт.

11

700113634

SHAFT

ASSEMBLY

1шт.
