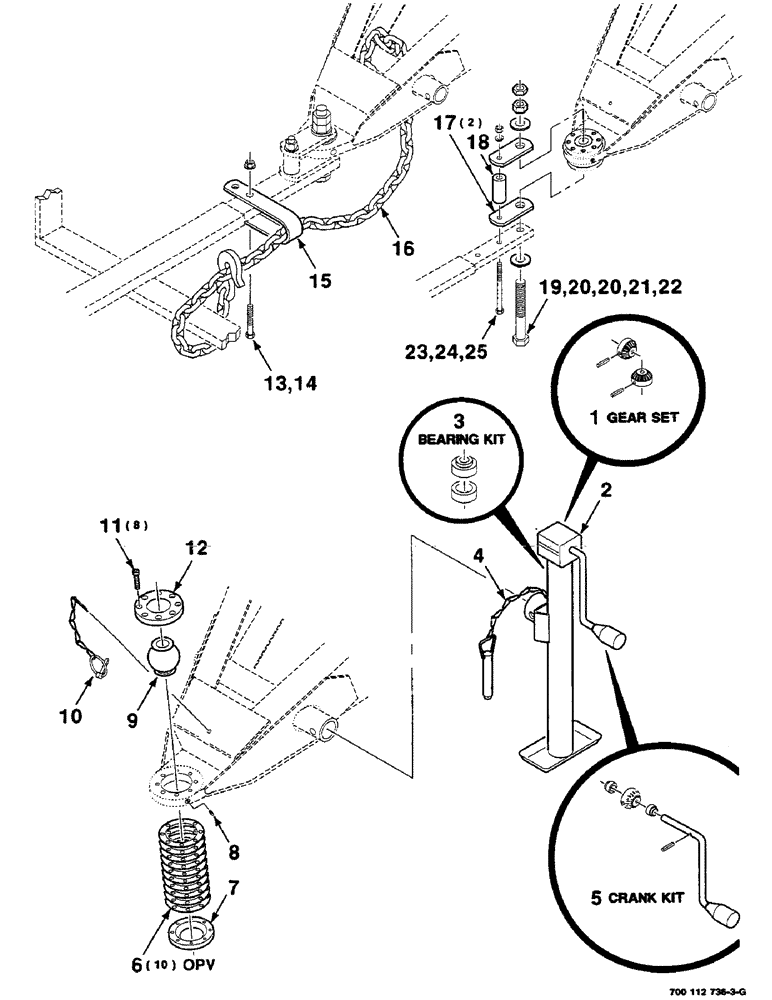

Запчасти Case IH 8590 (02-02) - HITCH AND JACK ASSEMBLY Driveline

1

700713921

GEAR SET

1шт.

2

700713889

JACK

(Includes Items 1, 3 and 5)

1шт.

3

700713920

KIT

BEARING - kit

1шт.

4

700713922

PIN

W/CHAIN

1шт.

5

700711509

CRANKED HANDLE

CRANK KIT

1шт.

6

1663163

SHIM

10шт.

7

1663158

RING

- hitch, lower

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

9

1663159

BALL

- hitch

1шт.

10

762260

PIN

1/4 X 1-3/4 KLIK PIN, chain & CP

1шт.

11

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

3/8-16 X 2 HSHCS GR/8

8шт.

12

1663157

RING

- hitch, upper

1шт.

13

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8-11 X 3-3/4 C

1шт.

14

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

1шт.

15

700113646

CLEVIS

- safety chain

1шт.

16

700720132

CHAIN

- safety

1шт.

17

1663161

PLATE

- hitch

2шт.

18

1663162

SPACER,19.84mm ID x 45mm OD x 90mm L

1шт.

19

700124041

BOLT

1-1/4-7 X 9 HEX BOLT - special

1шт.

20

495-21138

WASHER,1 1/4"

1-1/4 HARDENED PLAIN WASHER

2шт.

21

425-1020

NUT,1 1/4"-7, G5

1-1/4-7 H

1шт.

22

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

1-1/4-7 HJN

1шт.

23

426-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 8

5/8-11 X 7-1/2 C GR/8

1шт.

24

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25

425-1010

NUT,5/8"-11, G5

1шт.
