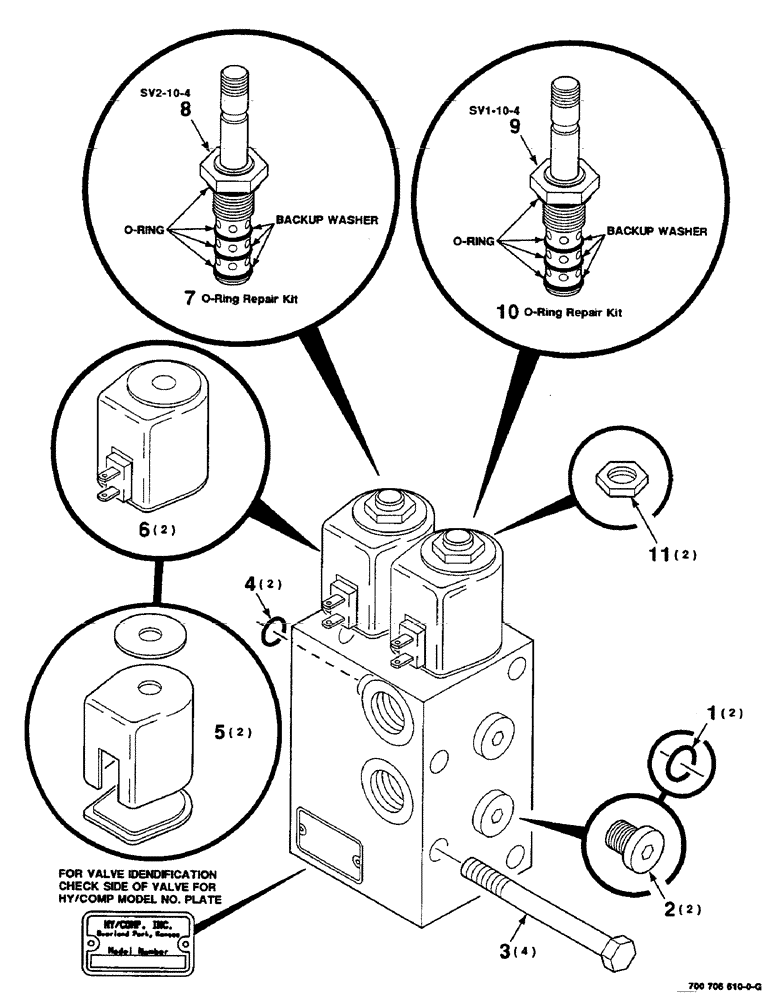

Запчасти Case IH 8590 (09-32) - HYDRAULIC CONTROL VALVE ASSEMBLY, 700706395 HYDRAULIC ASSEMBLY COMPLETE Decals & Attachments

700706395

VALVE PRESSURE RELIE

HYDRAULIC CONTROL VALVE ASSEMBLY COMPLETE

1шт.

1

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk

2шт.

2

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

- ORB (Includes Item 1)

2шт.

3

7772767

SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 C

4шт.

4

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

2шт.

5

700707826

REPAIR KIT

KIT - coil housing

2шт.

6

700710176

COIL

- solenoid

2шт.

7

700707215

SEAL KIT

KIT - seal

1шт.

8

700706611

CARTRIDGE

1шт.

9

700706610

CARTRIDGE

1шт.

10

700707843

SEAL KIT

KIT - seal

1шт.

11

700706151

NUT

2шт.
