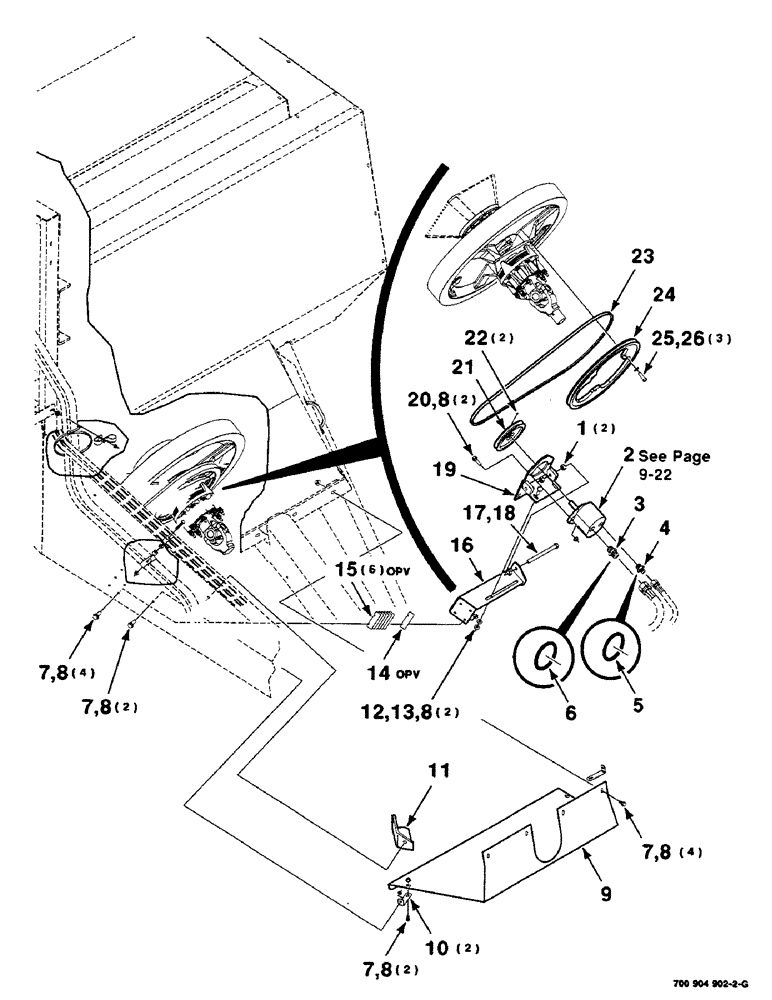

Запчасти Case IH 8590 (09-20) - KNOTTER BLOWER KIT, (CONT) Decals & Attachments

1

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

2

700717866

PUMP

- hydraulic

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

(Incl. Item 6) 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

4

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting (Incl. Item 5) 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

738484

O-RING

1шт.

7

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

12шт.

8

329-286

FLANGE NUT,Flg, 3/8"-16, G8

16шт.

9

700149701

SHIELD

- flywheel

1шт.

10

700149702

SUPPORT

ANGLE - support

2шт.

11

700149700

SUPPORT

- angle

1шт.

12

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

14

700718483

SHIM

- .018

1шт.

15

700718484

SHIM

- .034

6шт.

16

700149737

ANGLE

WA - mounting, pump

1шт.

17

873513

BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd

1/2-13 X 6 FTC

1шт.

18

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

19

700149726

SUPPORT

WA - pump

1шт.

20

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

21

700149735

SHEAVE

- HA

1шт.

22

83-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

1/4-20 X 3/8 CPHSSS NP

2шт.

23

700718206

V-BELT,1828.80 mm L

1шт.

24

700149736

SHEAVE

- HA

1шт.

25

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.
