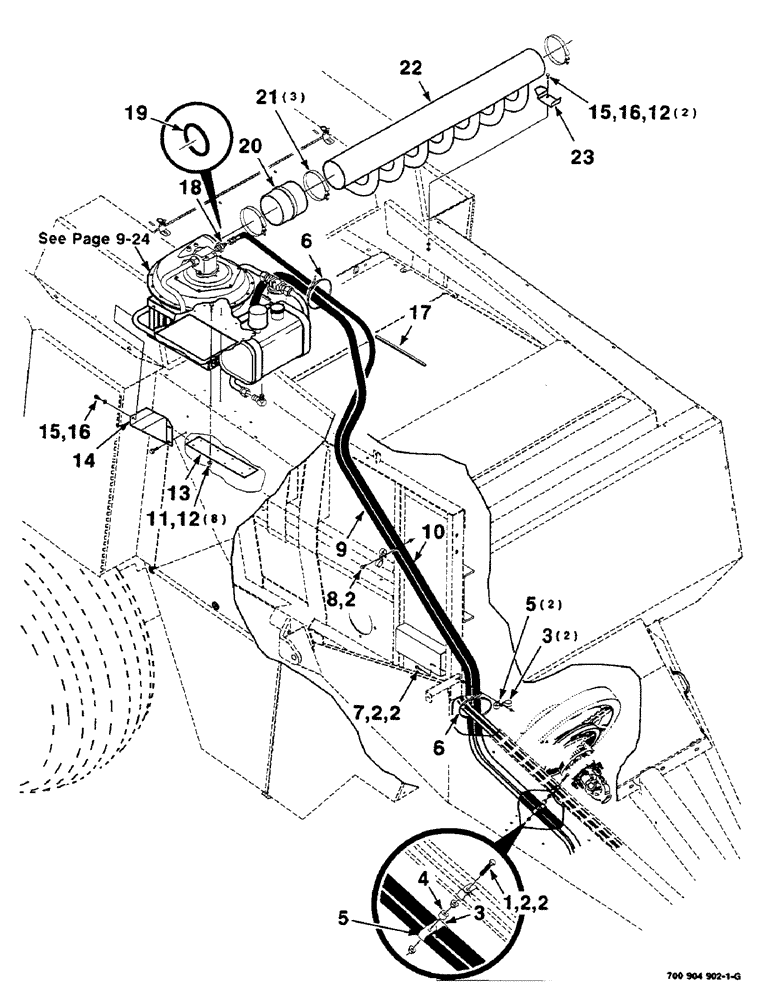

Запчасти Case IH 8590 (09-18) - KNOTTER BLOWER KIT, HK40955 KNOTTER BLOWER KIT COMPLETE Decals & Attachments

HK40955

KIT

KNOTTER BLOWER KIT COMPLETE

1шт.

1

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

2

329-286

FLANGE NUT,Flg, 3/8"-16, G8

5шт.

3

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line 1", Insul, 3/8" Bolt

3шт.

4

M42297

SPACER

1шт.

5

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line 3/4", Insul, 3/8" Bolt

3шт.

6

7721798

CABLE

TIE - nylon

2шт.

7

700711084

BOLT

3/8-16 X 1-1/2 HFS GR8

1шт.

8

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

1шт.

9

700718207

HOSE

- hydraulic

1шт.

10

700717865

HOSE

- hydraulic

1шт.

11

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

8шт.

12

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

10шт.

13

700149723

STRAP

- support

1шт.

14

700149741

SUPPORT

- blower

1шт.

15

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

3шт.

17

700105144

GROMMET

TRIM

1шт.

18

700701753

HYD CONNECTOR

FITTING - Hyd (Includes Item 19)

1шт.

19

738484

O-RING

1шт.

20

700717760

ADAPTER

- rubber

1шт.

21

700717761

CLAMP

- T Bolt

3шт.

22

700149720

MANIFOLD

WA

1шт.

23

700149725

CHANNEL

- mounting

1шт.
