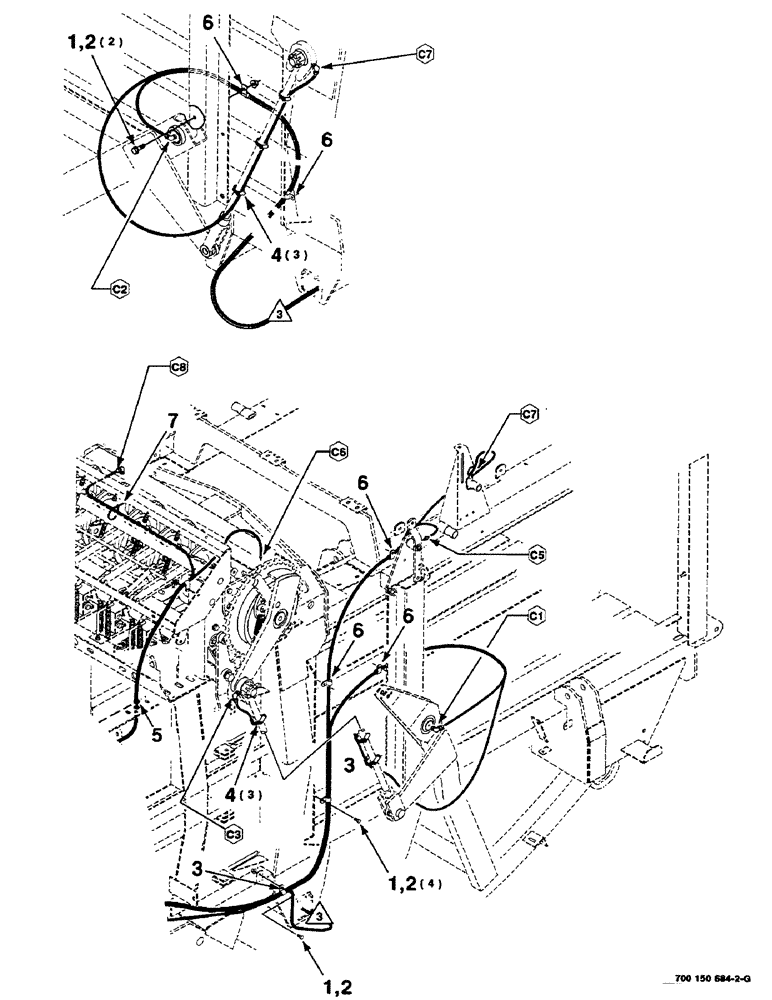

Запчасти Case IH 8590 (06-56) - AUTO LUBE ASSEMBLY, (CONT) (14) - BALE CHAMBER

1

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

7шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line 3/4", Insul, 3/8" Bolt

2шт.

4

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

6шт.

5

248-13101

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

1шт.

6

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

5шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
