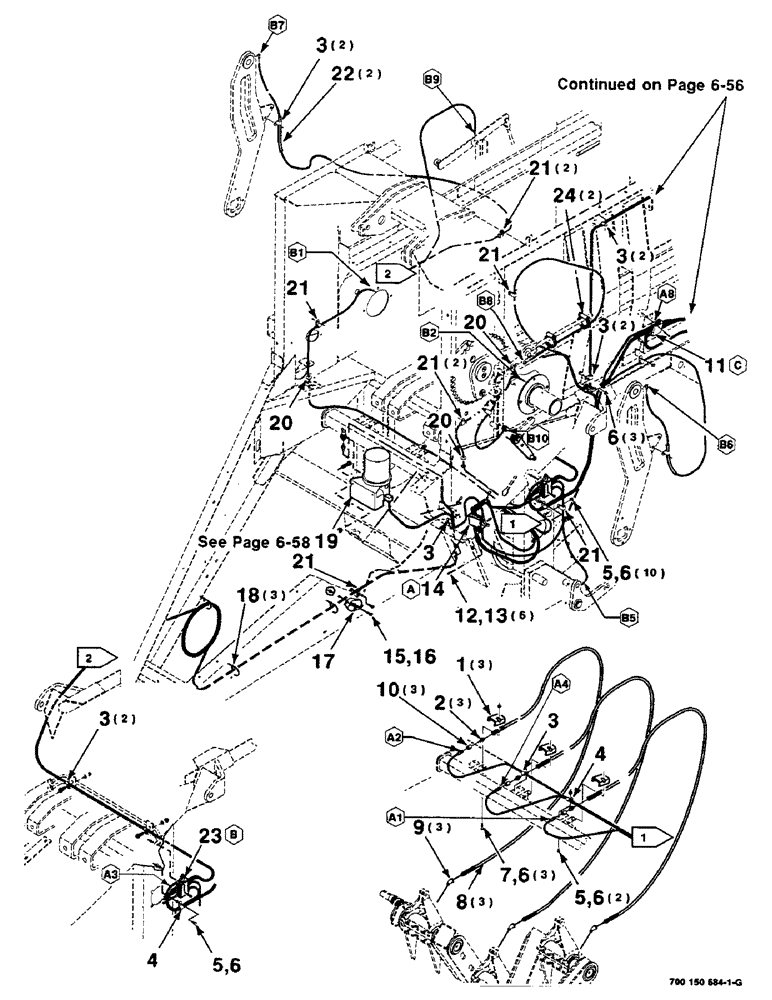

Запчасти Case IH 8590 (06-54) - AUTO LUBE ASSEMBLY, S.N. CFH0139500 AND LATER (14) - BALE CHAMBER

1

700113671

CLAMP

- line

3шт.

2

86513589

HYD CONNECTOR,7/16" - 20 JIC x 1/8" - 27 NPT

CONNECTOR - male, JIC-NPTF

3шт.

3

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

10шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line 3/4", Insul, 3/8" Bolt

2шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

13шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

19шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

8

700706798

FLEXIBLE HOSE

HOSE

3шт.

9

219-81

ELBOW,45 Degree, 1/8"-27

1/8-27 X 45 DEGREE STREET ELL

3шт.

10

221-326

COUPLING,Pipe, 1/8" NPT

- pipe

3шт.

11

700718111

MANIFOLD

HARNESS - valve, rear

1шт.

12

7701444

SCREW

#10-32 X 1-3/4 HWHMS

6шт.

13

225-14210

NUT,#10-32

6шт.

14

700718112

HARNESS

- primary valve

1шт.

15

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

16

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

17

700707011

HOLDER

- grease gun

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

19

700720087

LUBE PUMP

PUMP - lube

1шт.

20

248-13101

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

3шт.

21

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 CLAMP - line

8шт.

22

700720109

HOSE,6.35 mm ID x 150.00 mm, SAE 30R1 or 30R2

6.35 mm ID x 150.00 mm, SAE 30R1 or 30R2

2шт.

23

700718110

MANIFOLD

HARNESS - valve, front

1шт.

24

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.
