(06-46) - LUBE HARNESS AND VALVE ASSEMBLY, RIGHT REAR, S.N. CFH0139001 THRU CFH0139499

Запчасти Case IH 8590 (06-46) - LUBE HARNESS AND VALVE ASSEMBLY, RIGHT REAR, S.N. CFH0139001 THRU CFH0139499 (14) - BALE CHAMBER

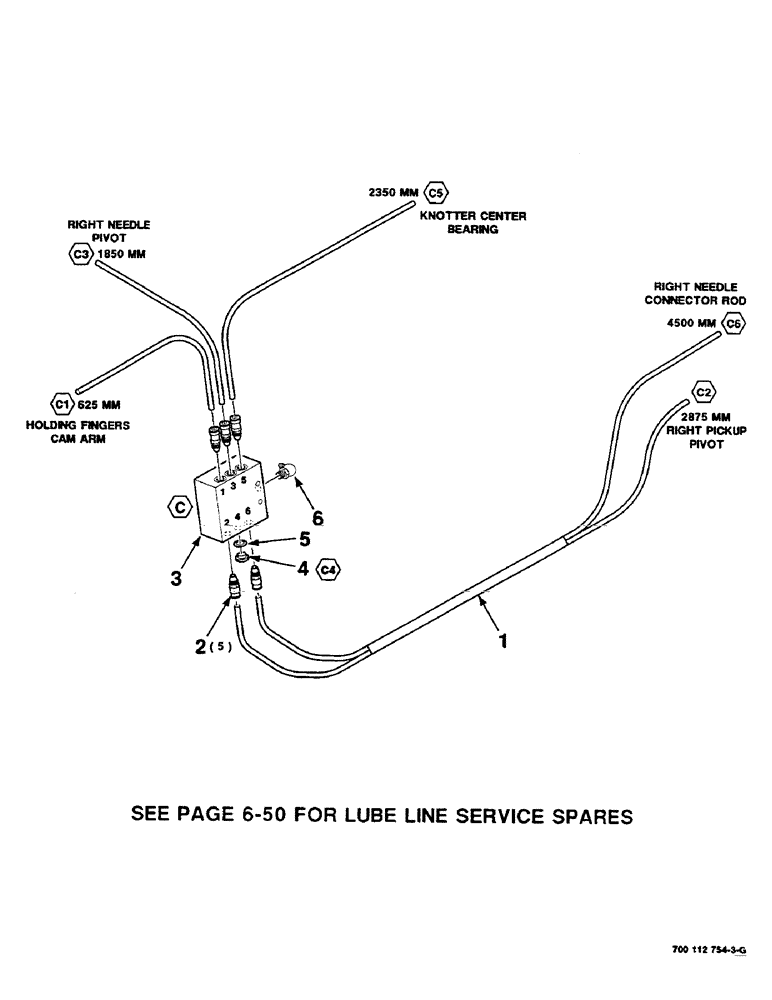

Схема запчастей Case IH 8590 - (06-46) - LUBE HARNESS AND VALVE ASSEMBLY, RIGHT REAR, S.N. CFH0139001 THRU CFH0139499 (14) - BALE CHAMBER
6
2
1
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700113890

FLEXIBLE SHEATH

HARNESS - lube

1шт.

2

700714008

HYD CONNECTOR

FITTING - quickline

5шт.

3

700706835

MANIFOLD

VALVE BLOCK - lube

1шт.

4

700706841

PLUG

- closure

1шт.

5

700706839

GASKET,10.31mm ID x 13.82mm OD x 0.84mm Thk

1шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 90 DEGREE ZERK

1шт.
