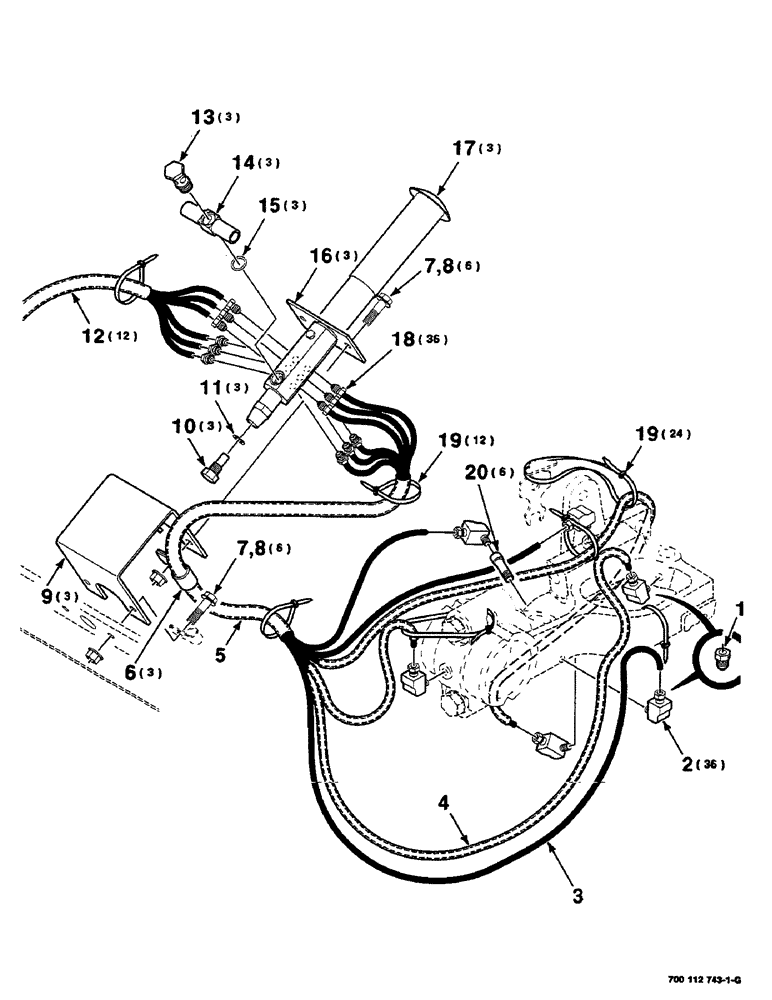

Запчасти Case IH 8590 (06-38) - LUBE PUMP AND LINE ASSEMBLY, KNOTTER (14) - BALE CHAMBER

1

219-302

TUBE NUT

- compression

1шт.

2

792259

NUT

- male (Includes Item 1)

36шт.

3

700113359

TUBE,0.125" OD, 3048 mm Length

TUBING - nylon (10 Foot Bulk)

1шт.

4

700113360

FLEXIBLE SHEATH

1/4 COVERING - protective (10 Foot Bulk)

1шт.

5

700123362

FLEXIBLE SHEATH

1/2 COVERING - protective (10 Foot Bulk)

1шт.

6

700711751

CLAMP

3шт.

7

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

12шт.

8

1703354

NUT

1/4-20 HFTLN GR/G

12шт.

9

700113353

SUPPORT

3шт.

10

700706539

PLUG

- stop

3шт.

11

700706540

COPPER WASHER

GASKET

3шт.

12

700123460

WIRE HARNESS

HARNESS - knotter

12шт.

13

700706543

3 WAY CONNECTION

STUD - tee

3шт.

14

700706542

3 WAY CONNECTION

NIPPLE - tee

3шт.

15

700706541

COPPER WASHER

GASKET

3шт.

16

700113361

SUPPORT

- pump

3шт.

17

700706276

SMALL PUMP

PUMP - multiluber

3шт.

18

700706277

TUBE NUT

- compression

36шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

36шт.

20

700706280

HYD CONNECTOR

EXTENSION - zerk

6шт.
