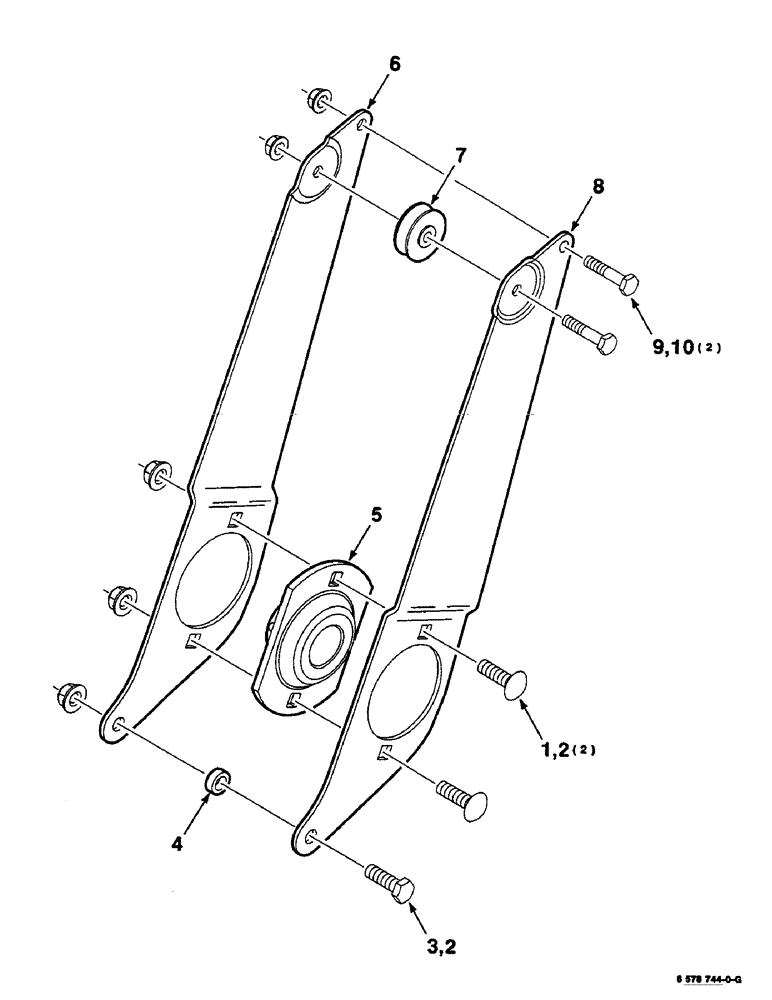

Запчасти Case IH 8590 (06-28) - TENSION ARM ASSEMBLY (14) - BALE CHAMBER

1

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

2шт.

2

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

3шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

4

6514772

SPACER

1шт.

5

700715941

FLANGED BEARING

BEARING - flange

1шт.

6

700137467

ARM

- right, tension

1шт.

7

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

BEARING

1шт.

8

700137466

ARM

- left, tension

1шт.

10

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

9

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
