Запчасти Case IH 8590 (06-22) - STARWHEEL ASSEMBLY (14) - BALE CHAMBER

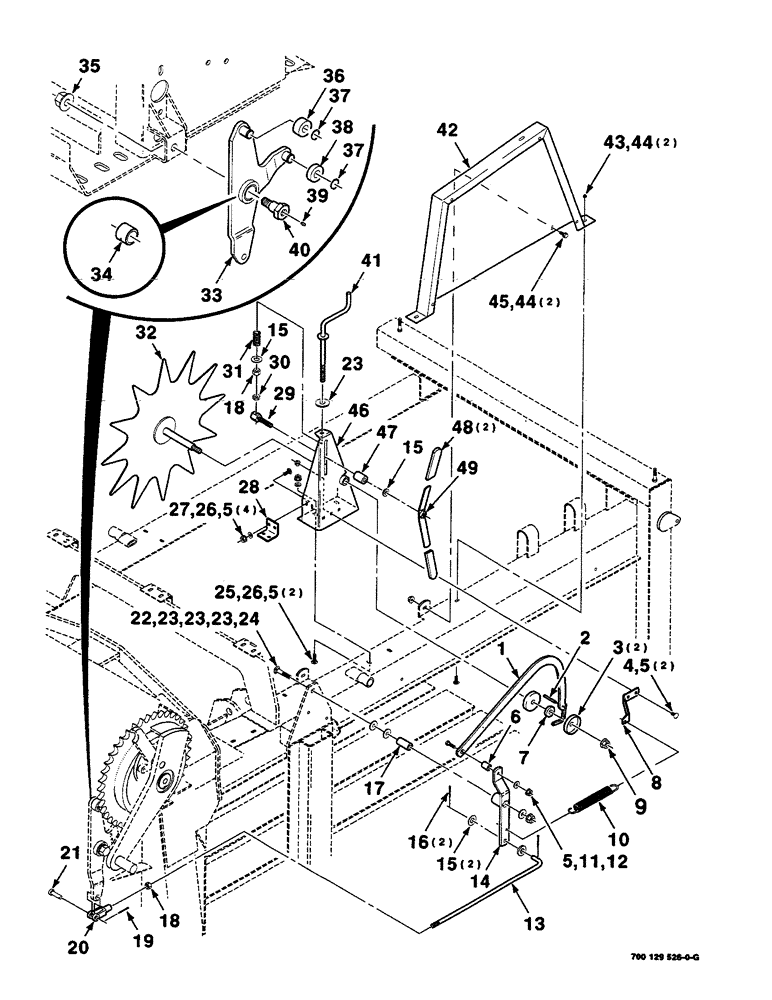

Схема запчастей Case IH 8590 - (06-22) - STARWHEEL ASSEMBLY (14) - BALE CHAMBER
26
49
28
46
9
15
13
32
21
5
41
20
10
6
40
31
26
30
37
4
8
44
18
3
2
14
42
43
24
22
12
45
5
7
33
48
11
18
15
1
23
23
5
23
15
44
25
37
35
16
36
39
38
19
17
23
47
27
29
5
34

Артикул

Название

Примечание

Количество

1

6530232

ARM

TRIP ARM WA

1шт.

2

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

3

700123850

SHIELD

- wheel

2шт.

4

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

5

329-286

FLANGE NUT,Flg, 3/8"-16, G8

9шт.

6

6530646

BUSHING

- pivot

1шт.

7

6530489

HUB

SPACER - hub

1шт.

8

700134937

SUPPORT

- spring

1шт.

9

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

10

758441

SPRING

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

12

495-21044

WASHER,3/8"

1шт.

13

700113105

ROD

- starwheel

1шт.

14

6530588

ARM

WA

1шт.

15

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

16

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.

17

6530638

BUSHING

- pivot

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

19

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

20

66183

SHAFT

1шт.

21

427-8150

CLEVIS PIN,1/2" x 1 1/2"

1/2X1.500 1.281 HD/HOLE CLEVIS ZND

1шт.

22

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 X 2-1/2 RHSNB

1шт.

23

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

4шт.

24

329-288

FLANGE NUT,Flg, 1/2"-13, G8

1шт.

25

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

26

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

27

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

28

700134449

ANGLE

- support

1шт.

29

700134527

SHAFT

- adjust

1шт.

30

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

31

58024

SPRING

- compression

1шт.

32

6530307

SPROCKET ASSY.

STARWHEEL

1шт.

33

700137490

ARM

ASSEMBLY (Includes Item 34)

1шт.

34

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle

1шт.

35

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

1шт.

36

700124056

ROLLER

- clutch

1шт.

37

100-1175

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

2шт.

38

6525042

ROLLER,41.28mm OD x 12.5mm L

- clutch

1шт.

39

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

40

700137491

BOLT

- special, needle Brg

1шт.

41

700134938

CRANKED HANDLE

CRANK WA

1шт.

42

700133656

SHIELD

WA - starwheel

1шт.

43

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

2шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

45

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

46

700134931

BRACKET

WA - starwheel

1шт.

47

6234710

SPACER

1шт.

48

827360

HANDLE

GRIP

2шт.

49

700134935

LEVER

ASSEMBLY

1шт.

Выбрано товаров: 49
