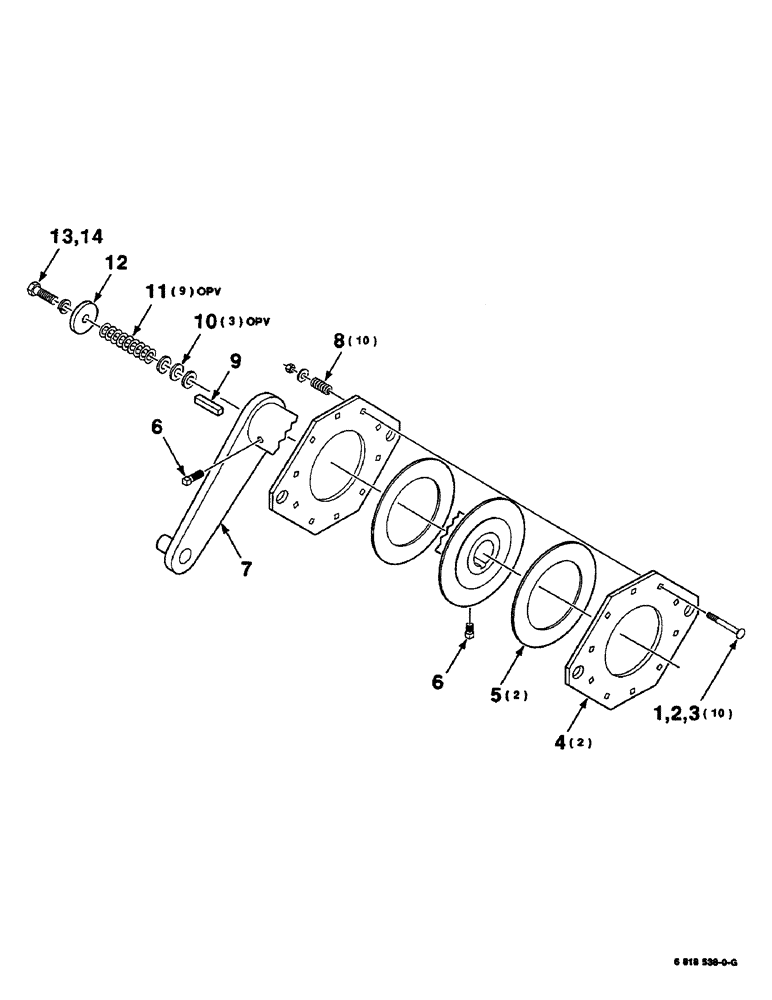

Запчасти Case IH 8590 (06-18) - KNOTTER BRAKE ASSEMBLY (14) - BALE CHAMBER

1

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 RHSNB

10шт.

2

495-21044

WASHER,3/8"

10шт.

3

231-1406

LOCK NUT,3/8"-16, GB

3/8-16 LHSN

10шт.

4

6818561

PLATE

- pressure

2шт.

5

700710946

CLUTCH PLATE

DISC - friction

2шт.

6

708081

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

1/2-13 X 1-1/4 CPSQHSS

2шт.

7

700134409

LIFT ARM

ARM WA - right

1шт.

8

58644

SPRING

- compression

10шт.

9

61879

KEY

1/2 X 1/2 X 2-1/2 KEY

1шт.

10

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

11

6553275

SHIM

9шт.

12

6561351

CAP WASHER

- knotter

1шт.

13

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

C Hex, 5/8"-11 x 2", G5

1шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
