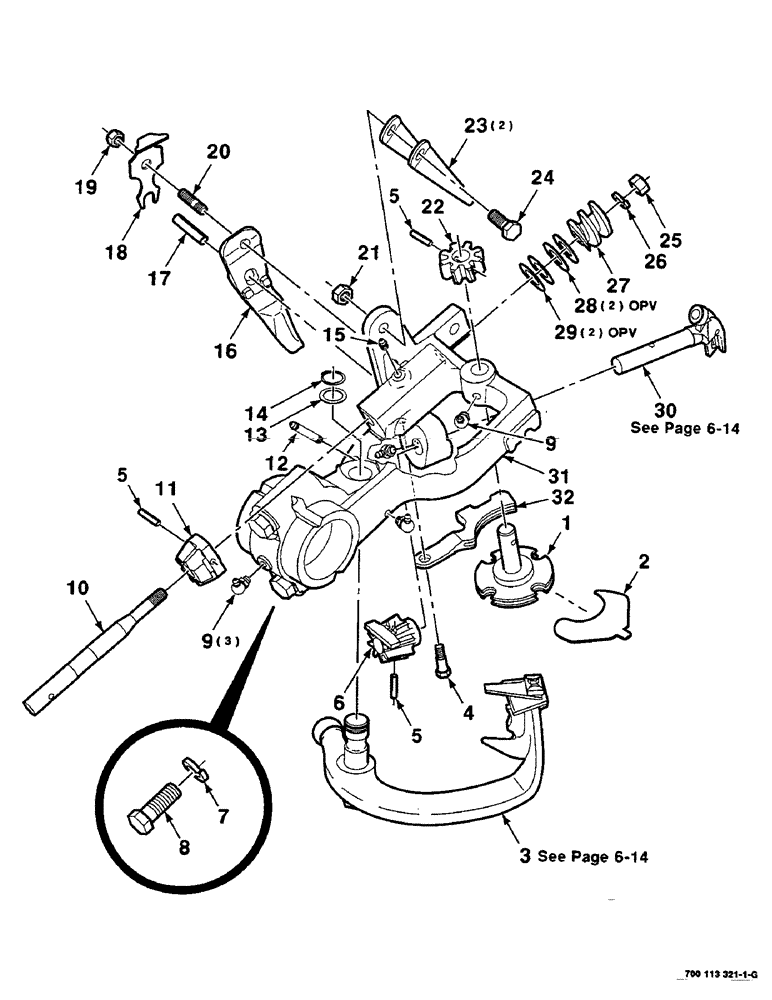

Запчасти Case IH 8590 (06-12) - KNOTTER HEAD ASSEMBLY, 700113321 KNOTTER HEAD ASSEMBLY COMPLETE (14) - BALE CHAMBER

700113321

KNOTTER

HEAD ASSEMBLY COMPLETE

1шт.

1

1712868

DISC

ASSEMBLY - twine

1шт.

2

6523807

CLEANER

- knotter

1шт.

3

700134430

STRIPPER

TWINE ASSEMBLY - stripper

1шт.

4

702400022

SCREW

5/16-18 SHOULDER SCREW

1шт.

5

435-7614

GROOVED PIN,3/16" x 7/8", Type G

Pin, Grooved, 3/16" x 7/8", Type G

3шт.

6

7894389

PINION

GEAR - bill hook

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

8

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

9

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

4шт.

10

6553267

SHORT SHAFT

SHAFT - knotter, worm

1шт.

11

702700040

WORM GEAR

- bevel pinion

1шт.

12

219-417

LUBE NIPPLE,1/4" - 28 NPTF

1/4-28 X 1-5/8 STRAIGHT ZERK

1шт.

13

7852742

WASHER,19.84mm ID x 27.38mm OD x 0.889mm Thk

25/32 MACHINERY BUSHING - SPL

1шт.

14

100-1175

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

16

700113323

CAM

- bill hook

1шт.

17

138-153

LOCK PIN,5/16" x 1", Slotted

PIN, 5/16" x 1", Slotted

1шт.

18

7895733

SPRING

TENSIONER - spring

1шт.

19

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

20

6523229

STUD

- mounting

1шт.

21

425-146

JAM NUT,3/8" - 16, Gr 5

3/8-16 HJN GR2

1шт.

22

7894454

PINION

- twine disc

1шт.

23

6553259

SPRING

- twine

2шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

25

425-116

NUT,3/8" - 24, Gr 5

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

7894413

WORM GEAR

WORM - knotter

1шт.

28

7852163

BUSHING

5/8 MACHINERY BUSHING - SPL

2шт.

29

6553275

SHIM

- countershaft

2шт.

30

700700968

KNOTTER

BILL AND HOOK ASSEMBLY

1шт.

31

6591440

ASSEMBLY

FRAME - knotter head (Includes Items 7 and 8)

1шт.

32

8045148

HOLDER

- twine

1шт.
