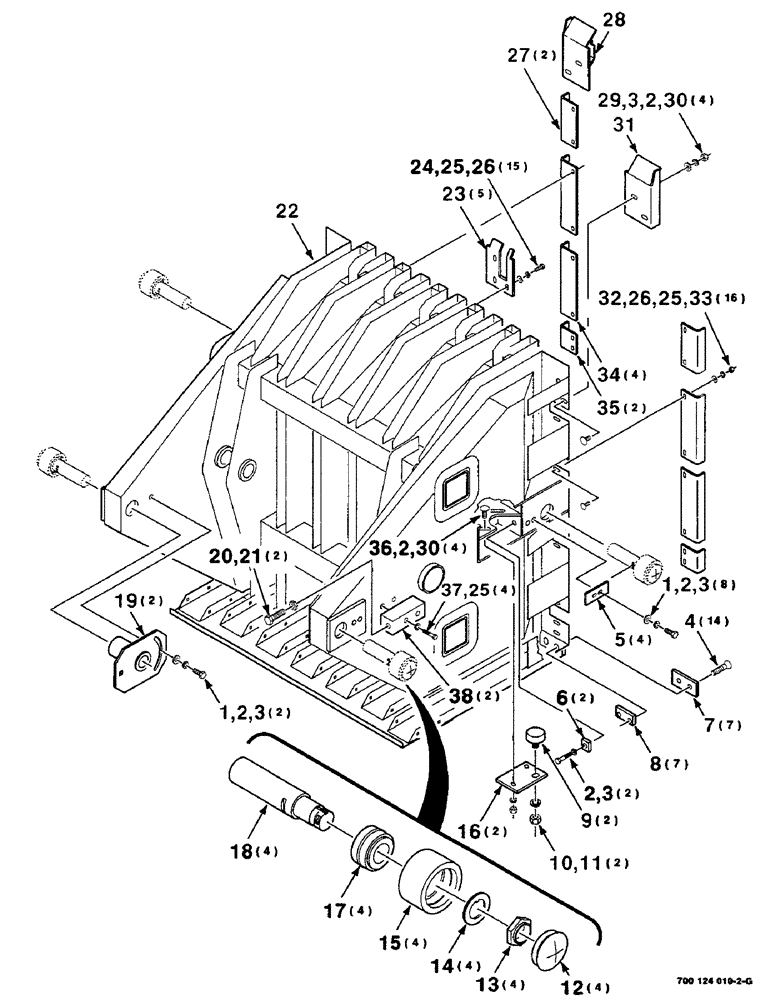

Запчасти Case IH 8590 (05-22) - PLUNGER, HEAD PLATES AND ROLLERS ASSEMBLY (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
10шт.
2
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
20шт.
3
705541
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
1/2 HARDENED PLAIN WASHER
16шт.
4
61-46224
HEX SOC SCREW,FLAT, 5/8" x 1-1/2"
5/8-11 X 1-1/2 HSFCHCS SPECIAL
14шт.
5
700124022
COVER PLATE
PLATE
4шт.
6
700124027
COVER PLATE
PLATE PUSHER
2шт.
7
700113188
KNIFE
7шт.
8
700113189
BAR
7шт.
9
7713829
BEARING ASSY,19.56 mm ID x 63.75 mm OD
2шт.
10
492-11075
LOCK WASHER,3/4"
3/4"
2шт.
11
425-1112
NUT,3/4"-16, G5
3/4-16 H
2шт.
12
378814R1
CAP
- hub
4шт.
13
700113171
NUT
1-5/16-18 STAKE NUT
4шт.
14
700706125
WASHER,33.86mm ID x 55.19mm OD x 3.17mm Thk
- tongued
4шт.
15
700113170
ROLLER,90.13mm OD x 51mm L
4шт.
16
700113176
COVER PLATE
PLATE
2шт.
17
700706124
BEARING ASSY,34.94mm ID x 65.11mm OD x 40.08mm W
BEARING ASSEMBLY
4шт.
18
700124026
SHAFT
4шт.
19
700121644
SUPPORT
WA
2шт.
20
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd
2шт.
21
425-146
JAM NUT,3/8" - 16, Gr 5
3/8-16 HJN
2шт.
22
700121641
PLUNGER
WA
1шт.
23
700113187
ANTI-WRAP PLATE
PLATE
5шт.
24
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
15шт.
25
492-11038
LOCK WASHER,3/8"
35шт.
26
496-11041
WASHER,13/32" x 13/16" x .065", HDN
3/8 HARDENED PLAIN WASHER
31шт.
27
700113184
ANGLE
2шт.
28
700113178
ANTI-WRAP PLATE
PLATE WA - right
1шт.
29
433-816
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
1/2-13 X 1 RHSNB
4шт.
30
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
8шт.
31
700113177
ANTI-WRAP PLATE
PLATE WA - left
1шт.
32
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
3/8-16 X 1 RHSNB
16шт.
33
425-106
NUT,3/8"-16, Cl 5
16шт.
34
700113185
ANGLE
4шт.
35
700113186
ANGLE
2шт.
36
433-820
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 X 1-1/4 RHSNB
4шт.
37
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
4шт.
38
700124023
BLOCK
2шт.
Выбрано товаров: 38
