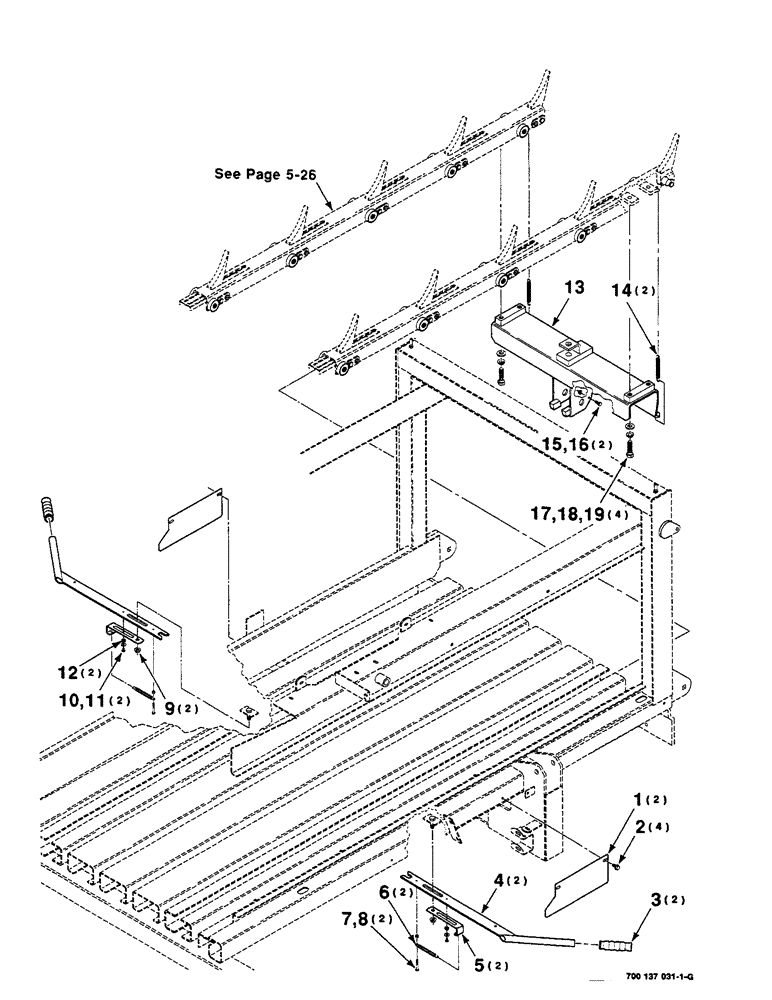

Запчасти Case IH 8585 (5-24) - EJECTOR AND MOUNTING ASSEMBLY (13) - FEEDER

1

700129665

LARGE PLATE

PLATE - decal

2шт.

2

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

4шт.

3

27342

GRIP

HANDLE GRIP

2шт.

4

700129704

HANDLE

WA

2шт.

5

700129769

SUPPORT

- spring

2шт.

6

7758915

SPRING

- extension

2шт.

7

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

2шт.

8

425-104

NUT,1/4"-20, Cl 5

2шт.

9

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

10

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

11

495-21031

WASHER,1/4"

1/4 WIDE PLAIN WASHER

2шт.

12

700127895

SPACER

2шт.

13

700137440

BRACKET

PUSHER WA - ejector

1шт.

14

700714166

SPRING

- extension

2шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

16

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

17

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 X 2-1/4 C

4шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

19

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.
