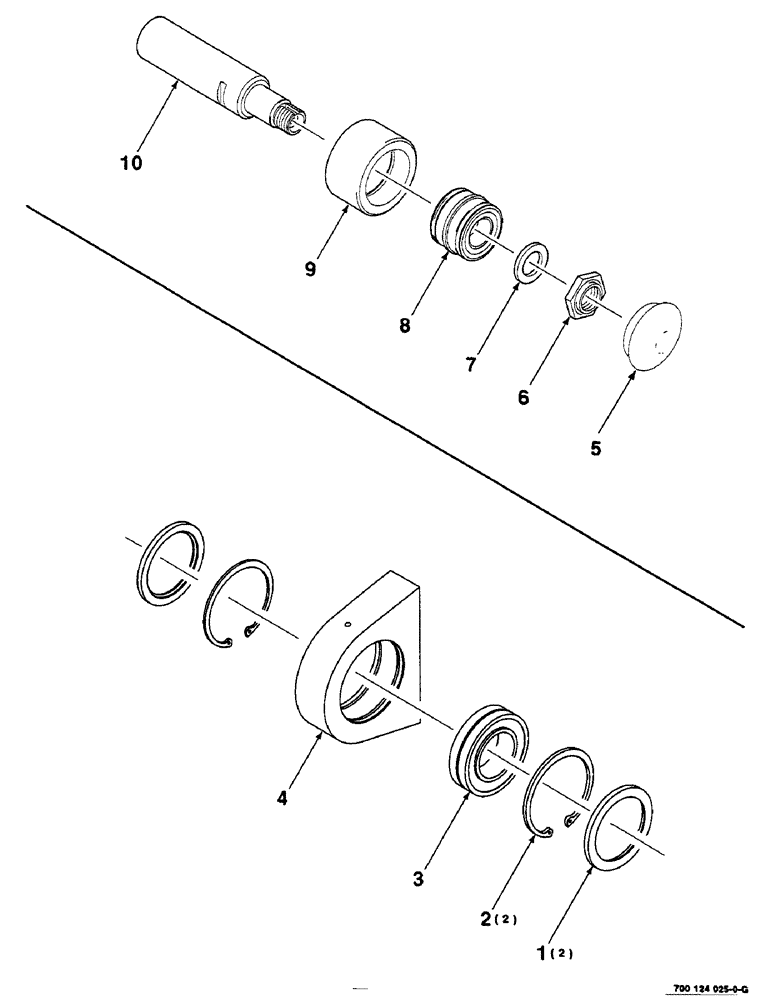

Запчасти Case IH 8585 (5-18) - PLUNGER CAM AND CRANK ARM BEARING ASSEMBLY (13) - FEEDER

1

700715740

SEAL

2шт.

2

700720004

RING

- retaining, internal

2шт.

3

700715741

SPHERICAL BEARING,65mm ID x 120mm OD x 31mm W

BEARING - roller, spherical

1шт.

4

700137110

HOUSING

- bearing

1шт.

5

378814R1

CAP

- hub

1шт.

6

700113171

NUT

- stake

1шт.

7

700706125

WASHER,33.86mm ID x 55.19mm OD x 3.17mm Thk

- tongued

1шт.

8

700706124

BEARING ASSY,34.94mm ID x 65.11mm OD x 40.08mm W

BEARING ASSEMBLY

1шт.

9

700113170

ROLLER,90.13mm OD x 51mm L

- cam

1шт.

10

700124026

SHAFT

1шт.
