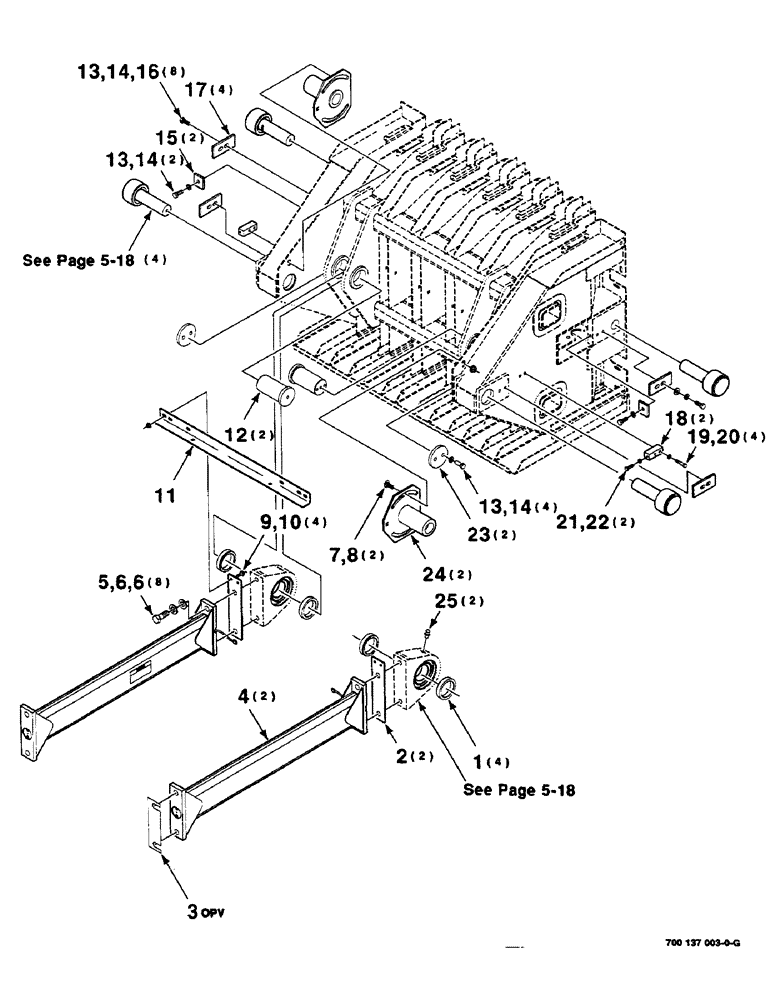

Запчасти Case IH 8585 (5-16) - PLUNGER ROLLER ASSEMBLY (13) - FEEDER

1

700137198

SPACER

- brg, crank arm

4шт.

2

700137187

PLATE ASSY.

PLATE

2шт.

3

700137210

SHIM

1шт.

4

700137196

ROD

ARM - connecting

2шт.

5

700706419

SCREW

3/4-10 X 2 C GR8 NP

8шт.

6

705566

WASHER

3/4 HARDENED PLAIN WASHER

16шт.

7

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

9

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

10

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

11

700137181

ANGLE

1шт.

12

700137183

SHAFT

2шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

14шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

14шт.

15

700124027

COVER PLATE

PLATE - pusher

2шт.

16

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

8шт.

17

700124022

COVER PLATE

PLATE

4шт.

18

700124023

BLOCK

2шт.

19

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

22

425-146

JAM NUT,3/8" - 16, Gr 5

3/8-16 HJN GR2

2шт.

23

700137184

PLATE ASSY.

PLATE

2шт.

24

700137200

SUPPORT

WA

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.
