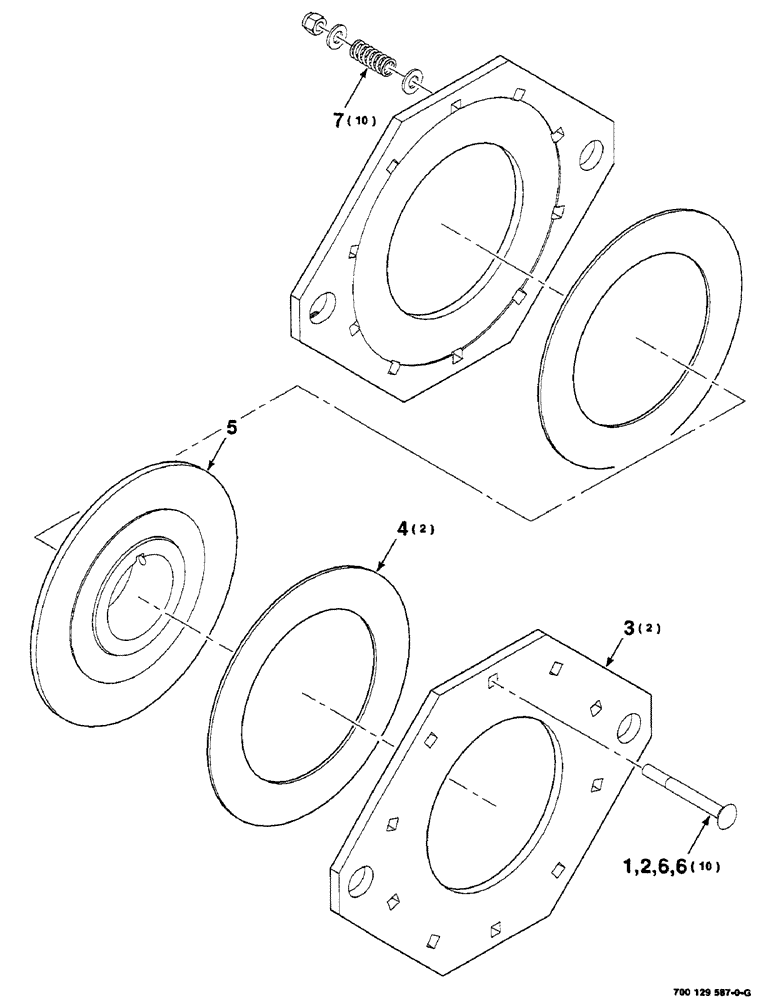

Запчасти Case IH 8585 (5-08) - BRAKE ASSEMBLY (13) - FEEDER

1

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 RHSNB

10шт.

2

231-1406

LOCK NUT,3/8"-16, GB

3/8-16 LHSN

10шт.

3

6818561

PLATE

- pressure

2шт.

4

700710946

CLUTCH PLATE

DISC - clutch

2шт.

5

700129588

HUB

- wa

1шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

20шт.

7

758011

SPRING

- compression

10шт.
