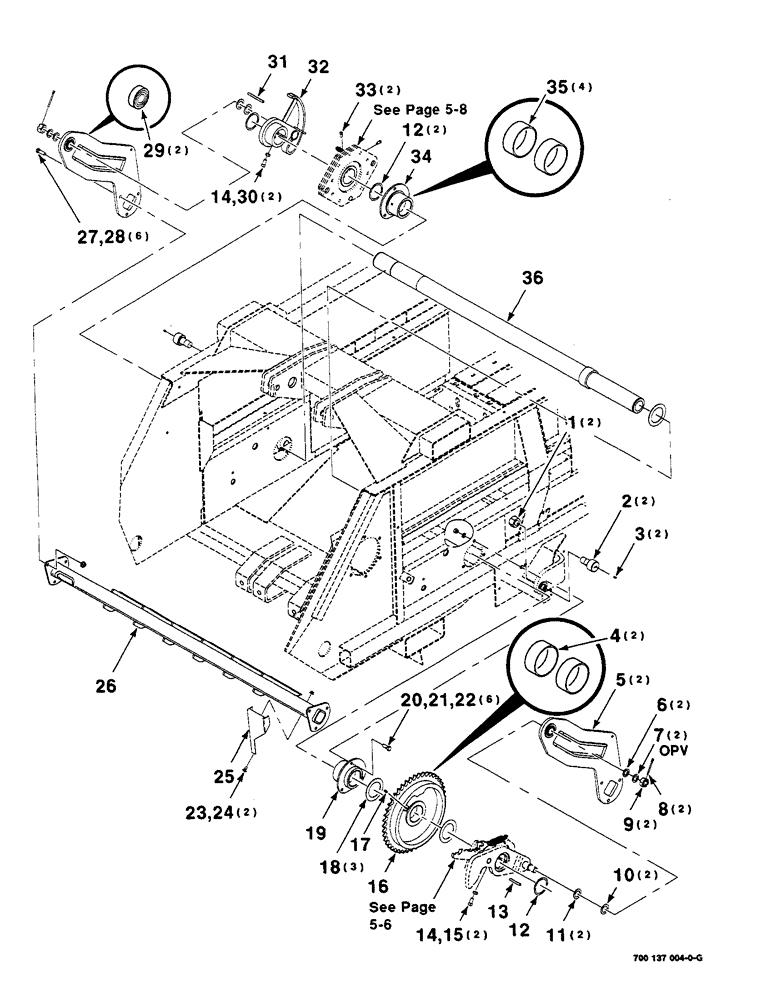

Запчасти Case IH 8585 (5-04) - CHARGE ASSEMBLIES (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
425-1118
NUT,1 1/8"-12, G5
1-1/8-12 H
2шт.
2
7713837
CAM FOLLOWER
BEARING - cam follower
2шт.
3
219-17
LUBE NIPPLE,3/16" NPTF
NIPPLE, LUBE, 3/16" x .55" lg, Drive
2шт.
4
700129529
BRONZE BUSHING
BUSHING - bronze
2шт.
5
700137236
ARM
ASSEMBLY - cam
2шт.
6
495-81070
WASHER,1 1/32" x 1 1/2" x .120"
1 X 10 GAUGE NRMB
2шт.
7
52258
BUSHING
1 X 14 GAUGE NRMB
2шт.
8
432-1640
COTTER PIN,1/4" x 2 1/2"
Pin, Split (Cotter), 1/4" x 2 1/2"
2шт.
9
25-1316
NUT,1"-14, G5
NUT, SLOTTED, 1"-14, G5
2шт.
10
495-81205
WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk
1-1/4 X 14 GAUGE NRMB
2шт.
11
52324
BUSHING
1-1/4 X 10 GAUGE NRMB
2шт.
12
7852767
RING
RETAINING RING
3шт.
13
761312
KEY
5/16 X 2-1/2 KEY
1шт.
14
85-816
SET SCREW,Sq Hd, 1/2"-13 x 1"
1/2-13 X 1 CPSQHSS NP
4шт.
15
700710414
JAM NUT
1/2-13 HJN GR8 NP
2шт.
16
700137243
SPROCKET ASSY.
SPROCKET ASSEMBLY - cam
1шт.
17
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
1шт.
18
700123293
WASHER
3шт.
19
700129533
SHAFT ASSY.
SUPPORT ASSEMBLY, left
1шт.
20
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
6шт.
21
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
6шт.
22
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
6шт.
23
433-612
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
2шт.
25
700129559
FINGER
1шт.
26
700137302
FINGER
WA - stuffer
1шт.
27
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
6шт.
28
231-5348
FLANGE NUT,Flg, 1/2"-13
1/2-13 HFTLN GR/G
6шт.
29
D46620
BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm
BUSHING
2шт.
30
700710414
JAM NUT
1/2-13 HJN GR8 NP
2шт.
32
700129590
CRANK
WA - right
1шт.
33
485-13812
SET SCREW,Sq Hd, 3/8"-16 x 3/4"
3/8-16 X 3/4 CPSQHSS NP
2шт.
34
700129534
SUPPORT
ASSEMBLY - right
1шт.
35
700129529
BRONZE BUSHING
BUSHING - bronze
4шт.
36
700137300
SHAFT
ASSEMBLY - stuffer
1шт.
Выбрано товаров: 36
