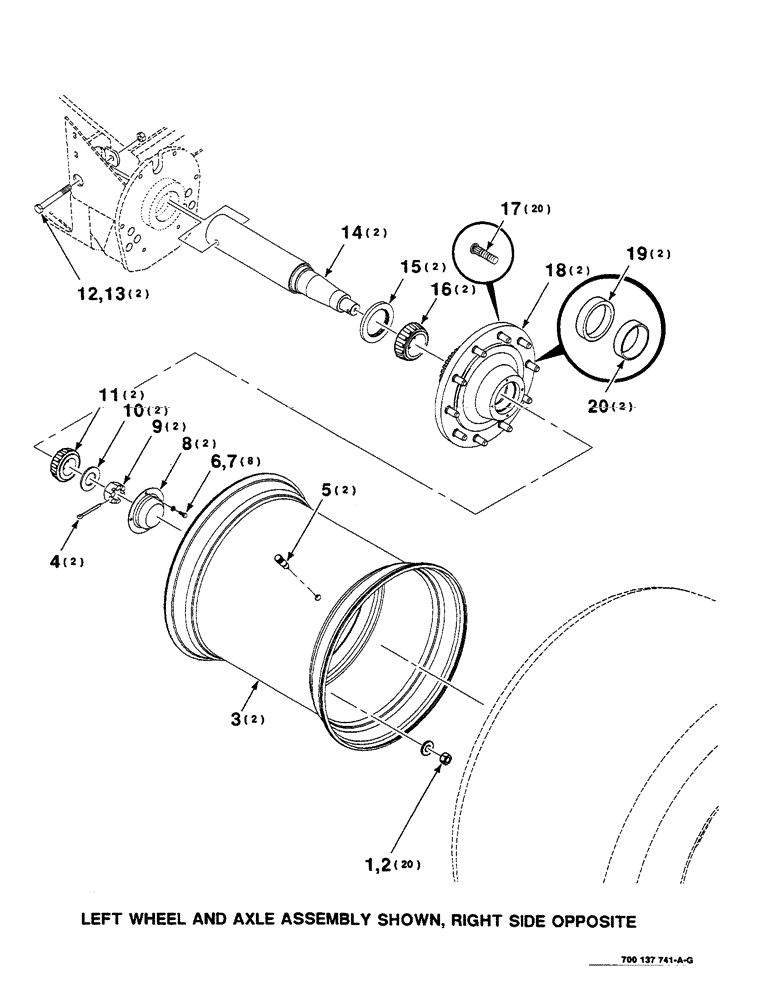

Запчасти Case IH 8585 (7-32) - WHEEL ASSEMBLY (12) - MAIN FRAME

1

29-1112

NUT,3/4"-16, G8

3/4-16 H GR8

20шт.

2

826271

WASHER

20шт.

3

700720020

WHEEL

- assembly, 22.5 x W24

2шт.

4

432-2048

COTTER PIN,5/16" x 3"

Pin, Split (Cotter), 5/16" x 3"

2шт.

5

7027469

VALVE

- clamp-in

2шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

826578

HUB CAP

CAP - hub

2шт.

9

25-1324

SLOTTED NUT,1 1/2"-12, G5

1-1/2-12 SHN GR2

2шт.

10

96-81002

WASHER,1.53" ID x 3" OD x 0.26" Thk

1-1/2 HARDENED PLAIN WASHER

2шт.

11

M53320

BEARING ASSY

CONE - bearing

2шт.

12

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

13

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

14

700137740

AXLE

SPINDLE

2шт.

15

7744519

SEAL

2шт.

16

13331DB

ROLLER BEARING,73.03mm ID x 36.17mm W

CONE - bearing

2шт.

17

826545

BOLT

- wheel

20шт.

18

700137742

HUB

ASSEMBLY

2шт.

19

13273D

BEARING, CUP,2.8755" ID x 5.001" OD x 1.452"

CUP - bearing

2шт.

20

1968292C1

BEARING

CUP - bearing

2шт.
