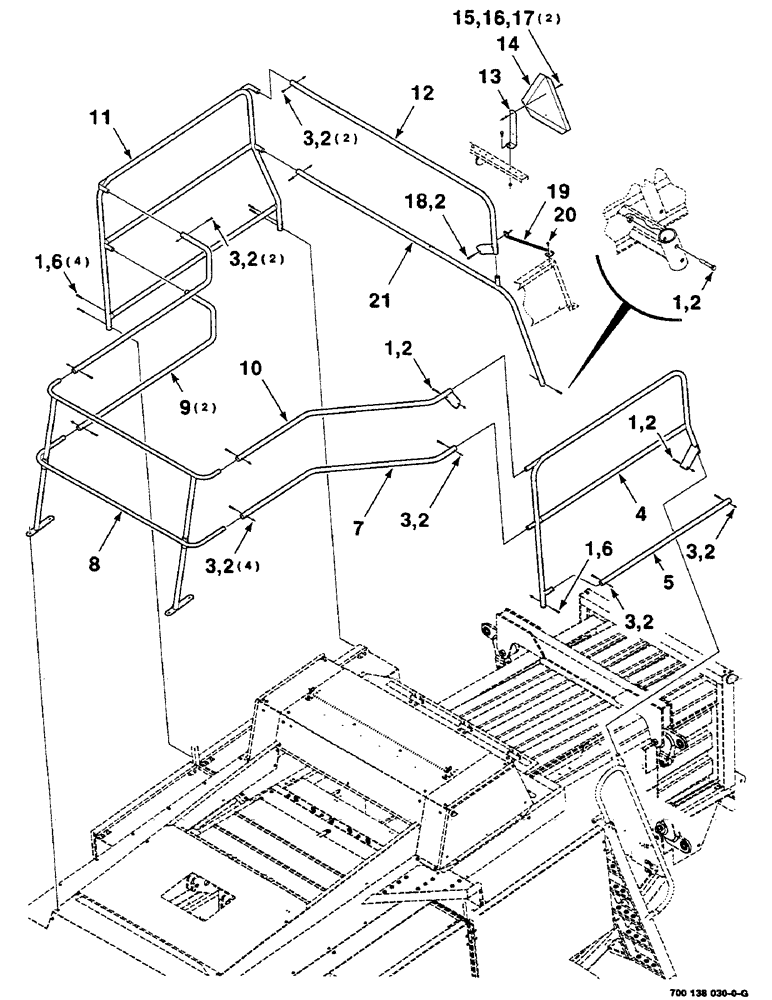

Запчасти Case IH 8585 (7-30) - HAND RAILS AND MOUNTING ASSEMBLY (12) - MAIN FRAME

1

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

8шт.

2

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

15шт.

3

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

11шт.

4

700138001

RAIL

WA - left

1шт.

5

700138004

PIPE

- rail, stop

1шт.

6

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

5шт.

7

700138009

RAIL

WA - top, left

1шт.

8

700138010

RAIL

WA - front

1шт.

9

700138029

PIPE

- rail, right

2шт.

10

700138028

PIPE

- rail, left

1шт.

11

700138015

RAIL

WA - right

1шт.

12

700138023

RAIL

WA - top, right

1шт.

13

700129666

BRACKET

SUPPORT - SMV

1шт.

14

7020589

EMBLEM

- SMV

1шт.

15

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

#10-24 X 3/4 CRPHMS GR60M

2шт.

16

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

17

225-14110

NUT,#10-24

2шт.

18

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16-18 X 2-1/4 C

1шт.

19

700138035

ANGLE

- support

1шт.

20

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

21

700138026

RAIL

WA - middle, right

1шт.
