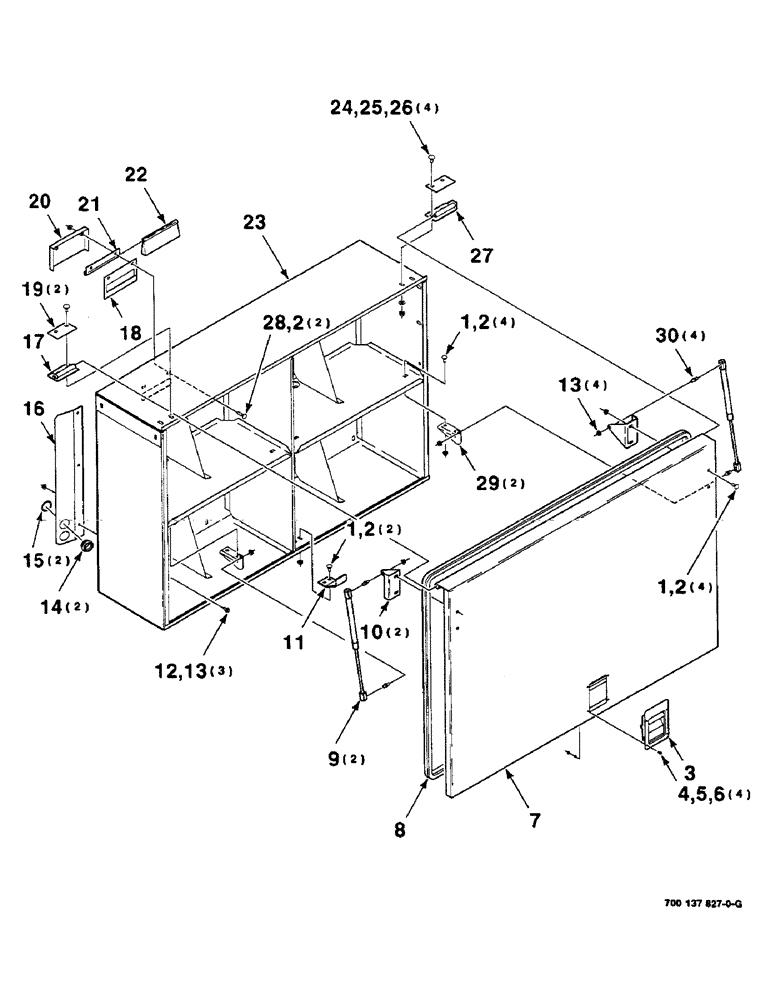

Запчасти Case IH 8585 (7-22) - TWINE BOX ASSEMBLY, REAR, LEFT, 700138121 TWINE BOX ASSEMBLY COMPLETE (12) - MAIN FRAME

700138121

BOX

TWINE BOX ASSEMBLY COMPLETE

1шт.

1

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

10шт.

2

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

12шт.

3

700720034

LATCH

- compartment

1шт.

4

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

GR60M Cross Pan Hd, #10-24 x 3/8"

4шт.

5

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

6

225-14110

NUT,#10-24

4шт.

7

700138126

DOOR

WA - rear, left

1шт.

8

700720047

SEAL

- door

1шт.

9

700720032

SPRING

GAS - spring, 600 N

2шт.

10

700137887

SUPPORT

- door

2шт.

11

700137886

CATCH

- latch

1шт.

12

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

7шт.

14

700137816

GUIDE

- twine

2шт.

15

100-11137

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

16

700137866

SHIELD

- center, left

1шт.

17

700137881

PIN

WA - right

1шт.

18

700137825

PLATE ASSY.

WEAR PLATE - twine

1шт.

19

700137824

PLATE ASSY.

PLATE - upper hinge

2шт.

20

700137822

COVER

WA - twine

1шт.

21

700720018

SUPPORT

- brush

1шт.

22

700716314

BRUSH, COMMUTATOR

BRUSH

1шт.

23

700138124

BOX

WA - twine, left

1шт.

24

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

25

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

26

231-5146

FLANGE NUT,3/8"-16

4шт.

27

700137880

PIN

WA - left

1шт.

28

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 1-1/4 RHSNB

2шт.

29

700137889

SUPPORT

- mounting

2шт.

30

700715279

STUD

- 10 MM ball

4шт.
