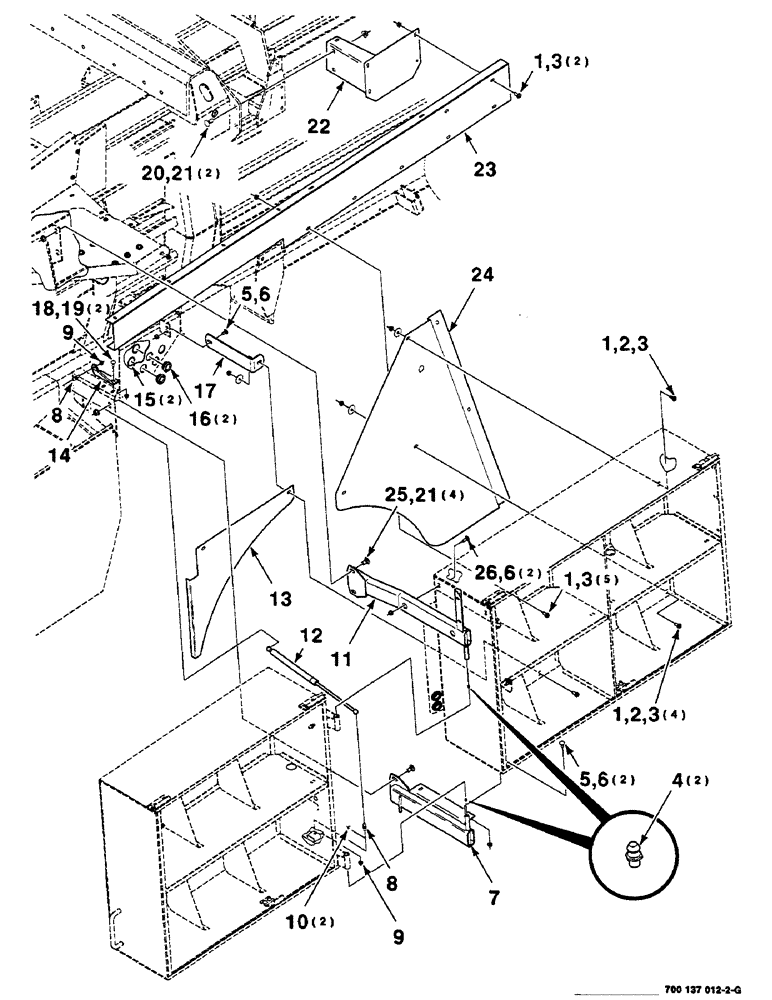

Запчасти Case IH 8585 (7-16) - TWINE BOX ASSEMBLY, LEFT (12) - MAIN FRAME

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

12шт.

2

700710049

WASHER

3/8 FENDER WASHER

5шт.

3

231-5146

FLANGE NUT,3/8"-16

12шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

5

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

6

329-286

FLANGE NUT,Flg, 3/8"-16, G8

5шт.

7

700137848

SUPPORT

WA - lower, left

1шт.

8

700720042

STUD

5/16-18 STUD - 13 MM ball

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

10

700720035

CLIP

- retainer 13MM

2шт.

11

700137855

SUPPORT

WA - upper, left

1шт.

12

700720043

SHOCK ABSORBER

SPRING - gas, 400 N

1шт.

13

700137971

PANEL

- shield, left

1шт.

14

700137820

SUPPORT

- mounting

1шт.

15

100-11137

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

16

700137816

GUIDE

- twine

2шт.

17

700123922

SUPPORT

- mounting

1шт.

18

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

19

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

20

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

21

329-288

FLANGE NUT,Flg, 1/2"-13, G8

6шт.

22

700137949

SUPPORT

WA - left

1шт.

23

700137945

SHIELD

- left, top

1шт.

24

700137965

SHIELD

- needle, left

1шт.

25

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

4шт.

26

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.
