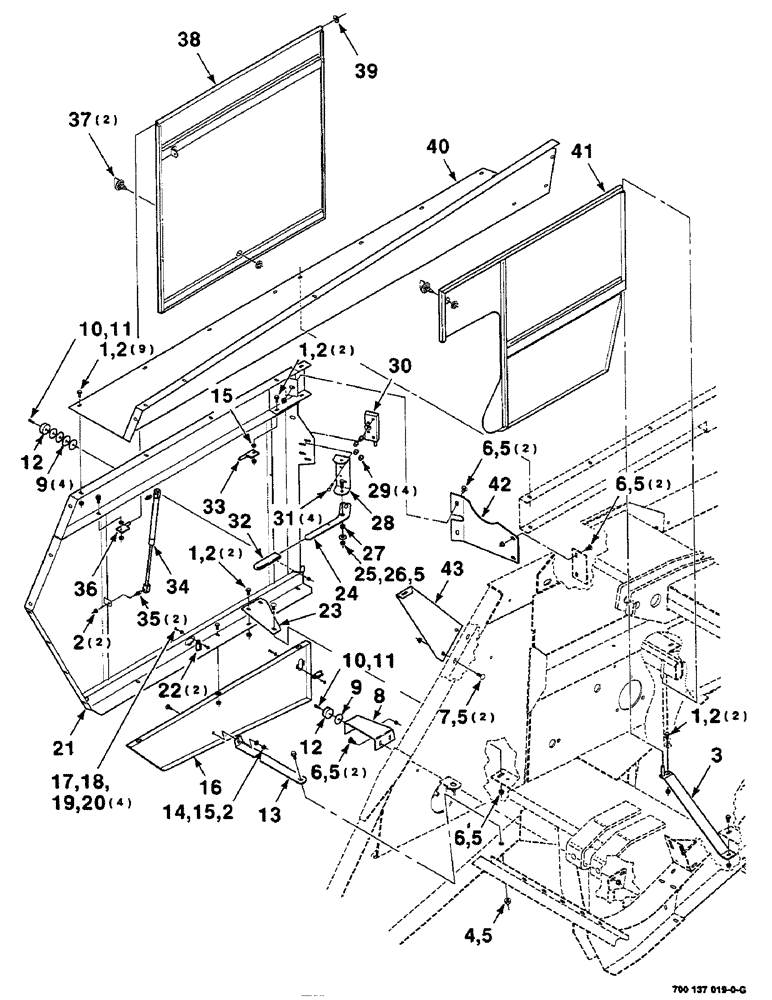

Запчасти Case IH 8585 (7-14) - MAIN SHIELD ASSEMBLY, RIGHT (12) - MAIN FRAME

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

15шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

18шт.

3

700137940

SUPPORT

WA - panel, right

1шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8 X 3/4 HWHMS

1шт.

5

329-286

FLANGE NUT,Flg, 3/8"-16, G8

11шт.

6

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

7шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

8

700137955

SUPPORT

- magnet, right

1шт.

9

76695

WASHER

5/16 FENDER WASHER

5шт.

10

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

2шт.

11

1954816C1

LOCK NUT

#12-24 HCLN SPL

2шт.

12

700708648

BUMPER

2шт.

13

700138036

STRAP

- mounting

1шт.

14

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

15

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

16

700137959

SHIELD

- lower, right

1шт.

17

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR60M

4шт.

18

195-513

WASHER,#10

PLAIN WASHER #10

4шт.

19

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

20

225-14110

NUT,#10-24

4шт.

21

700137921

SHIELD

WA - right

1шт.

22

700714529

SOCKET/RECEPTACLE

RECEPTACLE

2шт.

23

700137929

SUPPORT

1шт.

24

700137981

LEVER

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

26

495-21044

WASHER,3/8"

1шт.

27

700134804

SPACER

1шт.

28

700137933

SUPPORT

- latch

1шт.

29

318618

SPACER

BUSHING

4шт.

30

700720033

LATCH

- single rotor

1шт.

31

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

32

827360

HANDLE

GRIP

1шт.

33

700137961

HINGE

WA - right

1шт.

34

700720032

SPRING

GAS - spring, 600 N

1шт.

35

700715279

STUD

- 10 MM ball

2шт.

36

700137960

HINGE

WA - left

1шт.

37

700714706

LATCH

- 90° turn (Includes nut)

2шт.

38

700137934

PANEL

WA - door

1шт.

39

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

40

700137910

SHIELD

- right, top

1шт.

41

700137997

SHIELD

WA - right

1шт.

42

700137937

SUPPORT

1шт.

43

700137975

SUPPORT

- right

1шт.
