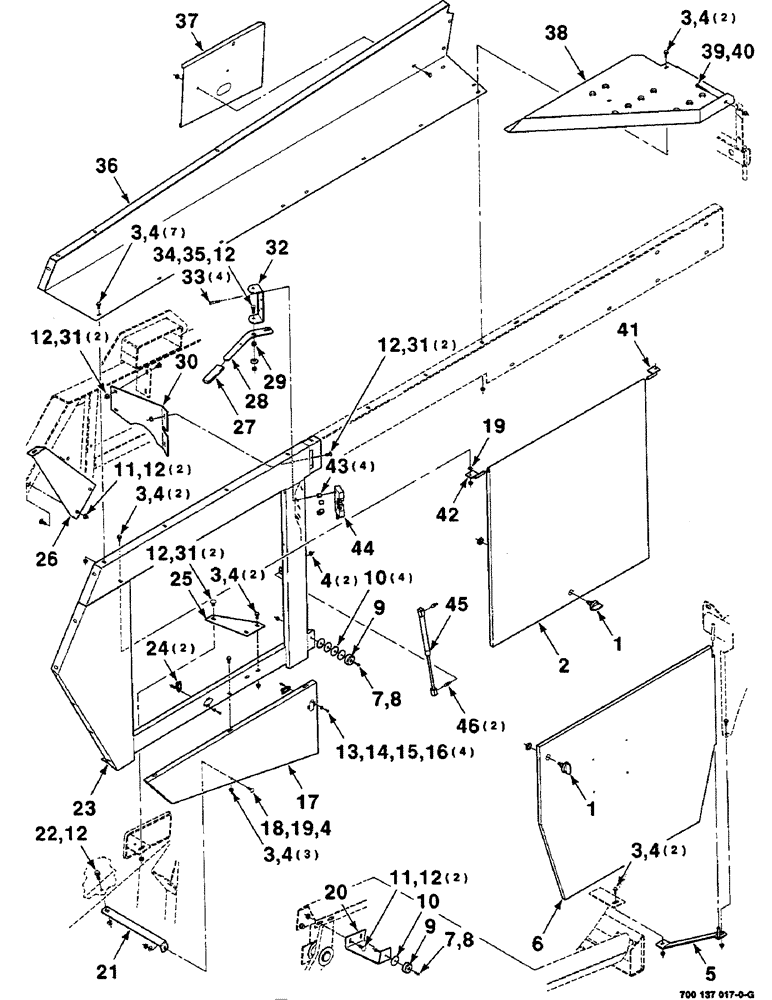

Запчасти Case IH 8585 (7-12) - MAIN SHIELD ASSEMBLY, LEFT (12) - MAIN FRAME

1

700714706

LATCH

- 90° turn (Includes nut)

2шт.

2

700137934

PANEL

WA - door

1шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

18шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

21шт.

5

700137939

SUPPORT

WA - panel, left

1шт.

6

700137996

SHIELD

WA - left

1шт.

7

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

2шт.

8

1954816C1

LOCK NUT

#12-24 HCLN SPL

2шт.

9

700708648

BUMPER

2шт.

10

76695

WASHER

5/16 FENDER WASHER

5шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

12

329-286

FLANGE NUT,Flg, 3/8"-16, G8

12шт.

13

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR60M

4шт.

14

195-513

WASHER,#10

PLAIN WASHER #10

4шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

16

225-14110

NUT,#10-24

4шт.

17

700137980

SHIELD

- lower, left

1шт.

18

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

20

700137954

SUPPORT

- magnet, left

1шт.

21

700138036

STRAP

- mounting

1шт.

22

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

23

700138110

SHIELD

WA - left

1шт.

24

700714529

SOCKET/RECEPTACLE

RECEPTACLE

2шт.

25

700137929

SUPPORT

1шт.

26

700137938

SUPPORT

- left

1шт.

27

827360

HANDLE

GRIP

1шт.

28

700137981

LEVER

1шт.

29

700134804

SPACER

1шт.

30

700137937

SUPPORT

1шт.

31

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

6шт.

32

700137933

SUPPORT

- latch

1шт.

33

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

35

495-21044

WASHER,3/8"

1шт.

36

700137891

SHIELD

- left, top

1шт.

37

700137899

SHIELD

1шт.

38

700137918

PANEL

- step

1шт.

39

7773930

BOLT

5/16-18 X 2 FTC

1шт.

40

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

41

700137960

HINGE

WA - left

1шт.

42

700137960

HINGE

WA - left

1шт.

43

318618

SPACER

BUSHING

4шт.

44

700720033

LATCH

- single rotor

1шт.

45

700720032

SPRING

GAS - spring, 600 N

1шт.

46

700715279

STUD

5/16-18 STUD - 10 MM ball

2шт.
