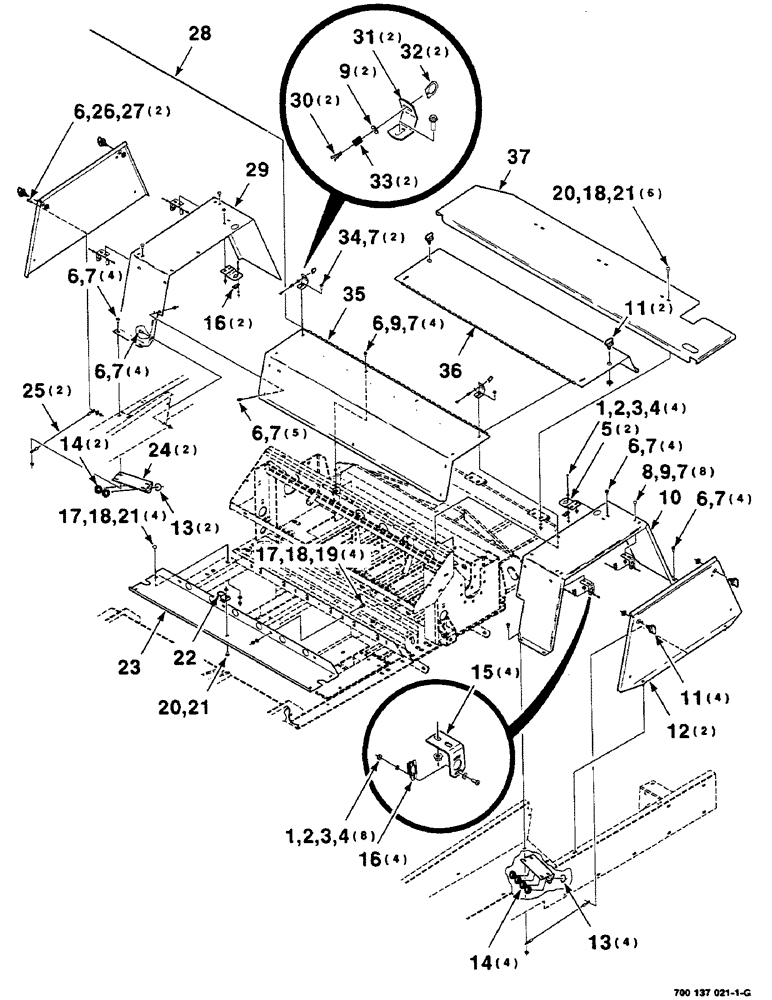

Запчасти Case IH 8585 (7-10) - KNOTTER SHIELDS ASSEMBLY (12) - MAIN FRAME

1

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR60M

12шт.

2

195-513

WASHER,#10

PLAIN WASHER #10

12шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

12шт.

4

225-14110

NUT,#10-24

12шт.

5

700133160

SUPPORT

- latch

2шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

27шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

35шт.

8

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

8шт.

9

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

14шт.

10

700133153

SHIELD

FRAME - knotter, left

1шт.

11

700714706

LATCH

- 90° turn (Includes nut)

6шт.

12

700133155

SHIELD

WA - knotter

2шт.

13

100-11137

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

6шт.

14

700137816

GUIDE

- twine

6шт.

15

700133164

SUPPORT

- receptacle

4шт.

16

700714529

SOCKET/RECEPTACLE

RECEPTACLE

6шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

18

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

14шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

20

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

7шт.

21

329-286

FLANGE NUT,Flg, 3/8"-16, G8

11шт.

22

700138037

STRAP

ANGLE

1шт.

23

700137914

CHANNEL

- top

1шт.

24

700138000

ANGLE

- guide

2шт.

25

8021693

CABLE

2шт.

26

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

27

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

28

700137956

PIN

BAR - rd

1шт.

29

700133154

SHIELD

FRAME - knotter, right

1шт.

30

7894975

CLIP

2шт.

31

6564595

STOP

- door

2шт.

32

7894967

HANDLE

2шт.

33

7758212

SPRING

- compression

2шт.

34

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

35

700137979

SHIELD

- knotter, front

1шт.

36

700137978

SHIELD

- knotter, rear

1шт.

37

700137957

PLATFORM

1шт.
