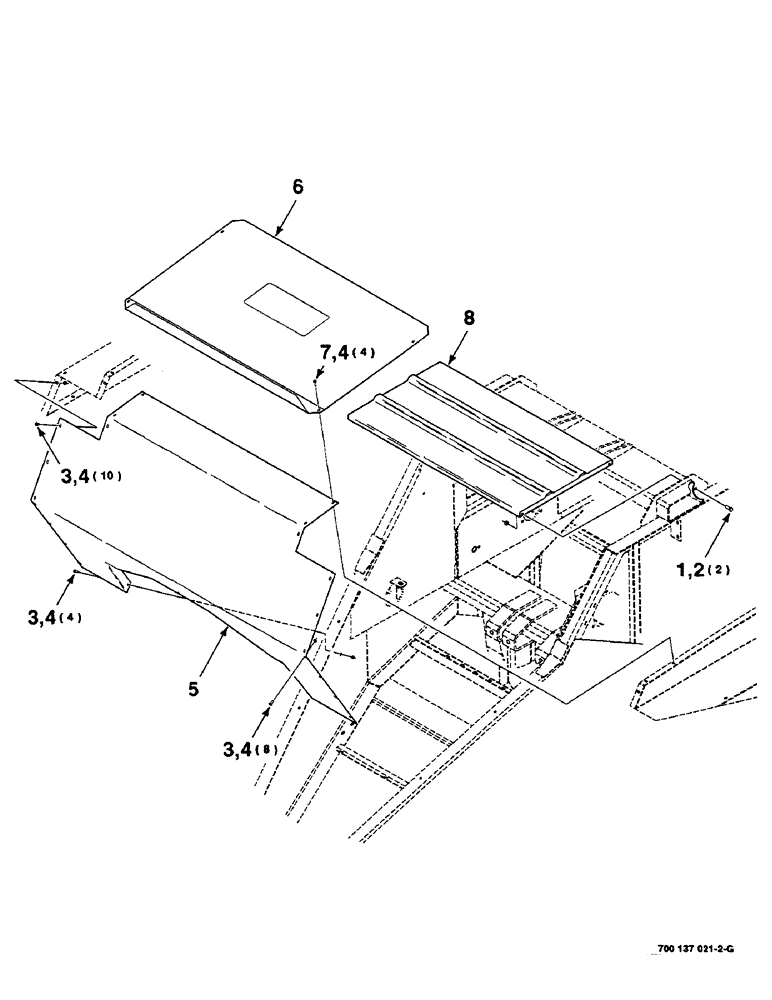

Запчасти Case IH 8585 (7-08) - TOP SHIELDS ASSEMBLY (12) - MAIN FRAME

1

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

2

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GRB

2шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

22шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

26шт.

5

700137890

SHIELD

- front

1шт.

6

700137977

SHIELD

1шт.

7

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

4шт.

8

700137911

LID

WA

1шт.
