(7-02) - PLUNGER RAILS, KNIVES AND HAY DOG ASSEMBLIES

Запчасти Case IH 8585 (7-02) - PLUNGER RAILS, KNIVES AND HAY DOG ASSEMBLIES (12) - MAIN FRAME

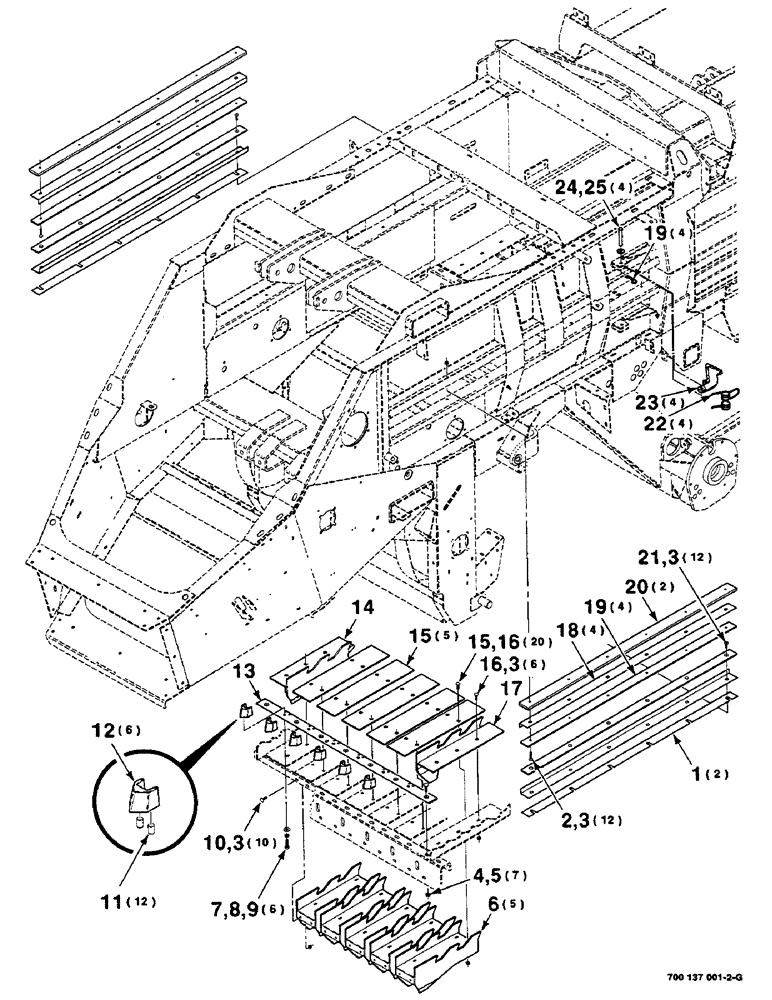

Схема запчастей Case IH 8585 - (7-02) - PLUNGER RAILS, KNIVES AND HAY DOG ASSEMBLIES (12) - MAIN FRAME
9
21
25
15
8
3
18
14
23
1
10
15
16
4
6
2
7
19
22
3
12
16
13
17
20
5
3
11
24
3
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700137594

SHIM

2шт.

2

164-54

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 3/4"

3/8-16 X 1-3/4 HSFCHCS SPECIAL

12шт.

3

329-286

FLANGE NUT,Flg, 3/8"-16, G8

40шт.

4

707448

BOLT

1/2-13 X 1-1/2 PLOW BOLT

7шт.

5

329-288

FLANGE NUT,Flg, 1/2"-13, G8

7шт.

6

700129640

DRIVE DOG

HAY DOG WA

5шт.

7

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

6шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

9

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

6шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

10шт.

11

37-1612

DOWEL,3/8" x 3/4"

3/8 X 3/4 DOWEL PIN

12шт.

12

700129647

PROTECTOR

- needle

6шт.

13

700715900

KNIFE

1шт.

14

700129646

DRIVE DOG

HAY DOG WA - right

1шт.

15

700129586

LARGE PLATE

PLATE - wear

5шт.

16

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 X 1-1/4 PLOW BOLT

6шт.

17

700129645

DRIVE DOG

HAY DOG WA - left

1шт.

18

700137581

ANGLE

- shield

4шт.

19

700715957

RAIL

- hardened

4шт.

20

700137582

RAIL

2шт.

21

61-43820

HEX SOC SCREW,FLAT, 3/8" x 1-1/4"

3/8-16 X 1-1/4 HSFCHCS SPECIAL

12шт.

22

700706376

SPRING

- torsion

4шт.

23

700137654

DOG

- hay

4шт.

24

439-11060

HEADED PIN,15.88mm OD x 95.25mm L

5/8 X 3-3/4 CLEVIS PIN

4шт.

25

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.
