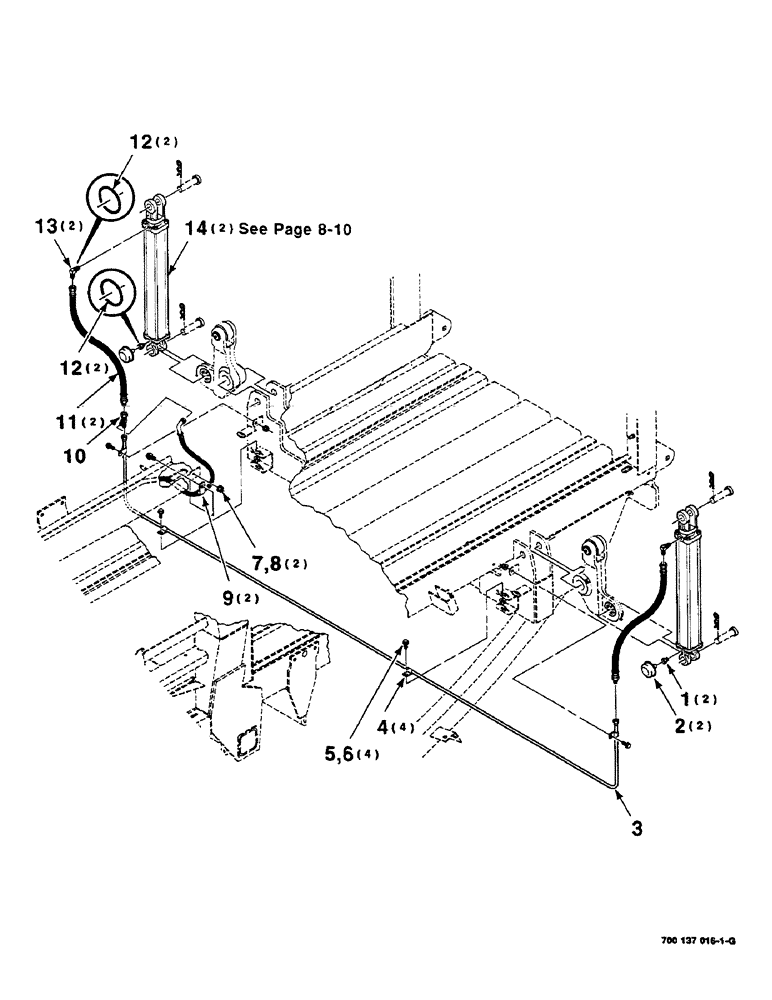

Запчасти Case IH 8585 (8-08) - HYDRAULIC BALE DENSITY ASSEMBLY (07) - HYDRAULICS

1

8046724

FITTING

ADAPTER - straight (Includes item 12)

2шт.

2

8799280

FILTER

2шт.

3

700706392

FLEXIBLE HOSE

LINE - hydraulic, rear

1шт.

4

700708939

CLAMP

- heavy duty

4шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

6

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

9

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

10

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

11

700716853

HOSE

- hydraulic

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

13

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

(Incl. item 12) 90º, 9/16"-18, 37º x 3/4"-16, O-Ring

2шт.

14

700715969

CYLINDER

- hydraulic

2шт.
