(8-06) - HYDRAULIC CYLINDER ASSEMBLY, PICKUP LIFT, 700712122 HYDRAULIC CYLINDER ASSEMBLY COMPLETE

Запчасти Case IH 8585 (8-06) - HYDRAULIC CYLINDER ASSEMBLY, PICKUP LIFT, 700712122 HYDRAULIC CYLINDER ASSEMBLY COMPLETE (07) - HYDRAULICS

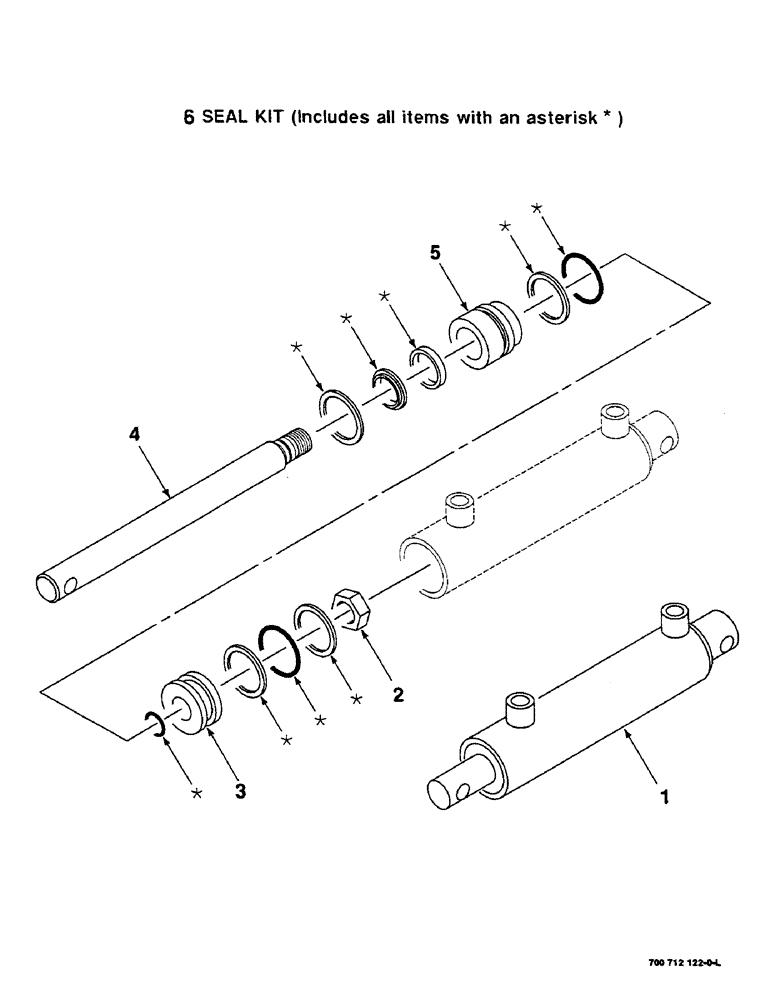

Схема запчастей Case IH 8585 - (8-06) - HYDRAULIC CYLINDER ASSEMBLY, PICKUP LIFT, 700712122 HYDRAULIC CYLINDER ASSEMBLY COMPLETE (07) - HYDRAULICS
6
4
1
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700712122

CYLINDER

HYDRAULIC CYLINDER COMPLETE 2" BORE DIAMETER X 8" STROKE

1шт.

2

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

3

700707419

PISTON

1шт.

4

700709465

ROD

1шт.

5

700711112

GUIDE

- rod

1шт.

6

700711114

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.
